Stereophonic Receiver SRB20

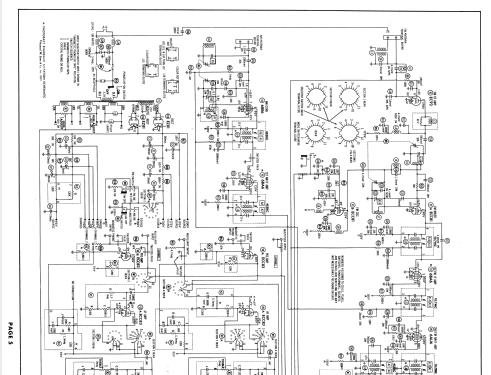

Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2584827) Radio

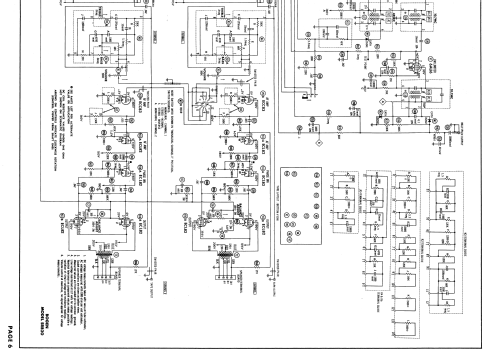

Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2584828) Radio
Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609761) Radio Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609766) Radio
Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609762) Radio Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609763) Radio
Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609765) Radio Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609767) Radio
Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609769) Radio Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609770) Radio
Stereophonic Receiver SRB20; Bogen, David Co., (ID = 1396427) Radio
Use red slider bar for more.
Stereophonic Receiver SRB20; Bogen, David Co., (ID = 2609761) Radio
Bogen, David Co.,: Stereophonic Receiver SRB20 [Radio] ID = 2609761 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereophonic Receiver SRB20, Bogen, David Co., Inc.; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 16: EC92 ECC81 6BA6 6BE6 6BA6 6AU6 6AU6 ECC83 ECC83 ECC83 ECL82 ECL82 ECL82 ECL82 EZ81 EZ81
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (max.)
from Radiomuseum.org Model: Stereophonic Receiver SRB20 - Bogen, David Co., Inc.; New
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 16.5 x 5.5 x 12.5 inch / 419 x 140 x 318 mm
Notes

Bogen Stereophonic Receiver Model SRB20.
2 x 10 watts output power, Frequency Range AM 520 -1640 kc, FM 88 - 108MHz.
16 Tubes and 3 crystal diodes.

Price in first year of sale 199.50 USD
Mentioned in Radio Shack Katalog 1960; Seite 11

Model page created by Franz Scharner. See "Data change" for further contributors.
