VP17

VP17 ; Bogen, David Co., (ID = 588034) R-Player

VP17 ; Bogen, David Co., (ID = 588035) R-Player

VP17 ; Bogen, David Co., (ID = 588036) R-Player

VP17 ; Bogen, David Co., (ID = 588037) R-Player

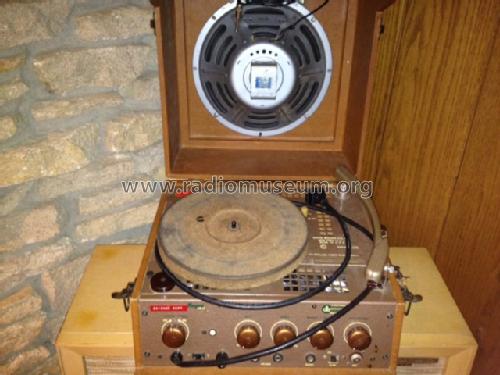

VP17 ; Bogen, David Co., (ID = 588033) R-Player VP17 ; Bogen, David Co., (ID = 1602026) R-Player
VP17 ; Bogen, David Co., (ID = 1602027) R-Player
Use red slider bar for more.
VP17 ; Bogen, David Co., (ID = 588033) R-Player
Bogen, David Co.,: VP17 [R-Player] ID = 588033 653x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model VP17, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1954 Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: 6SJ7 6SC7 6SL7GT 6V6GT 6V6GT 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: VP17 - Bogen, David Co., Inc.; New
Shape Tablemodel, with any shape - general.
Notes The David Bogen Model VP17 is an AC operated 2 Channel Audio Amplifier with 3 Speed Manual Record Player.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-54, Set 259, Folder 4)

Model page created by Egon Penker. See "Data change" for further contributors.
