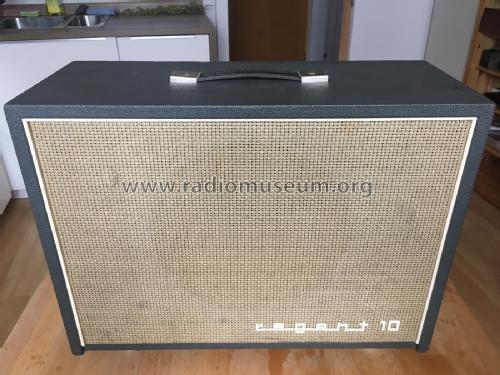

Regent 10 ECL86

Regent 10; Böhm KG; Klingenthal (ID = 744446) Ampl/Mixer Regent 10; Böhm KG; Klingenthal (ID = 744451) Ampl/Mixer
Use red slider bar for more.
Regent 10; Böhm KG; Klingenthal (ID = 744446) Ampl/Mixer
Böhm KG; Klingenthal: Regent 10 [Ampl/Mixer] ID = 744446 694x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regent 10 ECL86, Böhm KG; Klingenthal (Ostd.):
Foto: Lutz Würker .vermona.de Vielen Dank !

Country:  Germany
Manufacturer / Brand:  Böhm KG; Klingenthal (Ostd.)
Year: 1963 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: ECC83 ECL86 ECL86 EZ81
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 30 cm = 11.8 inch
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Regent 10 [ECL86] - Böhm KG; Klingenthal Ostd.
Material Metal case
Shape Console with any shape - in general
Notes

Instrumentalverstärker mit eingebautem Lautsprecher L 2155 PB und
zwei getrennt regelbaren Eingängen (Klinkenbuchse).

Eingangsempfindlichkeit: je 30 mV
Eingangsimpedanz: 1 MOhm
Übertragungsbereich: 20 Hz ... 20 kHz (± 3 dB)
Ausgangsleistung: max. 8 W
Klirrfaktor: max. 4%
Gesamtklangregelung:
- Tiefen (50 Hz) +12 ... -14 dB
- Höhen (10 kHz) +12 ... -14 dB
Fremdspannungsabstand 54 dB.

Model page created by Frithjof Grassmann. See "Data change" for further contributors.



All listed radios etc. from Böhm KG; Klingenthal (Ostd.)
Here you find 10 models, 8 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Böhm KG; Klingenthal: Regent 10
Threads: 1 | Posts: 1
Hits: 1707     Replies: 0
bohm-kg: 10; Regent, Schematic
Michael Watterson
07.Aug.13
  1

It's likely the circuit is very similar to the EL84 version Regent 10.

Each ECL86 will replace an EL84 and 1/2 an ECC83. However that still leaves one ECC83 unaccounted for unless someone has miscounted. The Beam Tetrode output part of ECL86 may about 1.5V less volts grid bias (voltage on cathode resistor) for class A than EL84, but the difference may be less in Class B. The output power is similar.  The triode circuits should be similar.
