Regent 30

Regent 30; Böhm KG; Klingenthal (ID = 617587) Ampl/Mixer

Regent 30; Böhm KG; Klingenthal (ID = 617586) Ampl/Mixer

Regent 30; Böhm KG; Klingenthal (ID = 826149) Ampl/Mixer

Regent 30; Böhm KG; Klingenthal (ID = 826150) Ampl/Mixer
Regent 30; Böhm KG; Klingenthal (ID = 616617) Ampl/Mixer Regent 30; Böhm KG; Klingenthal (ID = 616618) Ampl/Mixer
Use red slider bar for more.

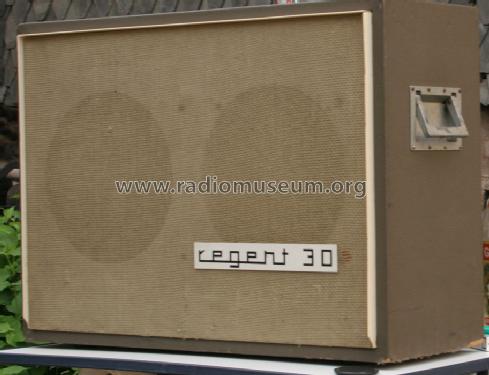

Regent 30; Böhm KG; Klingenthal (ID = 616617) Ampl/Mixer
Böhm KG; Klingenthal: Regent 30 [Ampl/Mixer] ID = 616617 913x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regent 30, Böhm KG; Klingenthal (Ostd.)

Country:  Germany
Manufacturer / Brand:  Böhm KG; Klingenthal (Ostd.)
Year: 1966 Category: Audio Amplifier or -mixer
Valves / Tubes 5: ECC83 ECC83 ECC83 EL34 EL34
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 30 cm = 11.8 inch
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Regent 30 - Böhm KG; Klingenthal Ostd.
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 760 x 480 x 380 mm / 29.9 x 18.9 x 15 inch
Notes Modell besteht intern aus zwei Geräten, dem Vorverstärker Regent 15/30 und dem Endverstärker Regent 30.
Koffermischverstärker mit 2 eingebauten Breitbandlautsprecher 12,5 VA L3060 PB, Ausgangsimpedanz 12 Ohm, 4 Eingänge (Klinke und DIN-Buchse); Übertragungsbereich: 20 Hz...20000 Hz.
Net weight (2.2 lb = 1 kg) 23 kg / 50 lb 10.6 oz (50.661 lb)
Mentioned in -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
