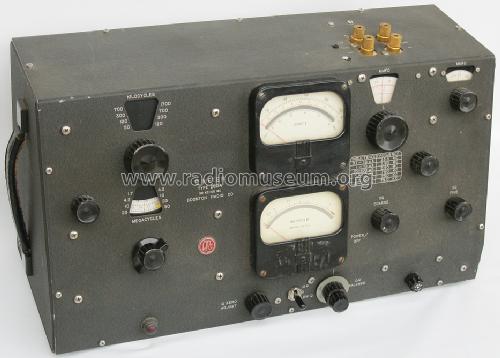

Q Meter 260-A

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247602) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247604) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247605) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247606) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247607) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247608) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247609) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247610) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247611) Equipment

Q Meter 260-A; Boonton Radio Corp.; (ID = 1247612) Equipment
Q Meter 260-A; Boonton Radio Corp.; (ID = 1632708) Equipment Q Meter 260-A; Boonton Radio Corp.; (ID = 1418174) Equipment

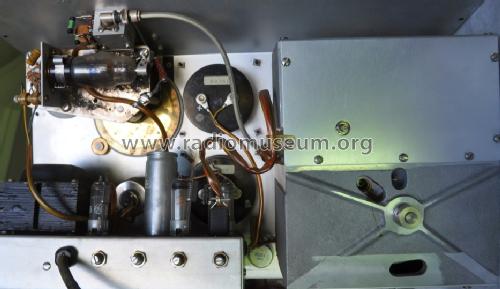

Q Meter 260-A; Boonton Radio Corp.; (ID = 1572919) Equipment Q Meter 260-A; Boonton Radio Corp.; (ID = 1572920) Equipment
Q Meter 260-A; Boonton Radio Corp.; (ID = 1572921) Equipment Q Meter 260-A; Boonton Radio Corp.; (ID = 1632707) Equipment
Q Meter 260-A; Boonton Radio Corp.; (ID = 1247600) Equipment Q Meter 260-A; Boonton Radio Corp.; (ID = 1632709) Equipment
Q Meter 260-A; Boonton Radio Corp.; (ID = 1632710) Equipment Q Meter 260-A; Boonton Radio Corp.; (ID = 1632711) Equipment
Use red slider bar for more.
Q Meter 260-A; Boonton Radio Corp.; (ID = 1632708) Equipment
Boonton Radio Corp.;: Q Meter 260-A [Equipment] ID = 1632708 933x705
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q Meter 260-A, Boonton Radio Corp.; Boonton, New Jersey

Country:  United States of America (USA)
Manufacturer / Brand:  Boonton Radio Corp.; Boonton, New Jersey
Year: 1953 perfect model Category: Service- or Lab Equipment
Valves / Tubes 3: 535-A 5763 6X4 0B2 0A2
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 95-130 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Q Meter 260-A - Boonton Radio Corp.; Boonton,
Material Metal case
Shape Tablemodel, slant panel.
Dimensions (WHD) 20 x 12.5 x 8.5 inch / 508 x 318 x 216 mm
Notes Boonton Q Meter 260-A uses for the voltmeter a unique calibrated tube, 535-A, especially made for Boonton. About the date, we found in Boonton's "The Notebook", Summer 1954, number 2 on page 5: "When the Q Meter Type 260-A was introduced in 1953, its predecessors, the Types 100-A and 160-A, had been giving satisfactory laboratory service for a period of over 18 years, and had long since become a standard for Q measurements." But its circuit had certain limitations and for this reason, the Q Meter Type 260-A was developed.
Two instruments, 50 kHz - 50 MHz, Boonton Radio Co. Rockaway NJ.
The Q Meter Type 260-A measures the Q of inductors directly from 10 to 625 over a frequency range of 50 KC to 50 MC. Values of inductance from 0.09 micro-henries to 130 millihenries can also be measured directly with this instrument. Front panel dials which indicate the frequency of the applied voltage and the capacitance of the measuring circuit permit the calculation of inductance outside this range as well as values of Q, X, R, and L or C of other components.
Frequency Range: Continuously variable from 50 kilocycles to 50 megacycles in eight self-contained ranges.
Frequency Accuracy: Approximately ±1%
Range of Circuit Q Measurement: Q measurement can be made from 10 to 625. Range of delta Q scale is from 0 to 50.
Accuracy of Q Measurement: Circuit Q of 250 read directly on the indicating meter is accurate to ±5% from 50 kc. to 30 Mc.; accuracy decreases to ±10% at 50 Mc.
Net weight (2.2 lb = 1 kg) 40 lb (40 lb 0 oz) / 18.160 kg
Source of data -- Collector info (Sammler)
Mentioned in Tube Testers and Classic Electronic Test Gear (page 119.)
Documents regarding this model
  Boonton 260A Manual raw 2373 KB

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Boonton Radio Corp.; Boonton, New Jersey
Here you find 20 models, 19 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Boonton Radio Corp.;: Q Meter 260-A
Threads: 1 | Posts: 1
Hits: 1335     Replies: 0
boonton: 260-A; Q Meter
Rudolf Drabek
09.Apr.13
  1

Dieses Modell hat im Gegensatz zum 160-A einen Widerstand von nur 0,02 Ohm im Thermocouple und belastet den Messkreis noch weniger. Die gemessene Güte lag also ein wenig höher als mit dem Vorläufermodell. Was aber nur für sehr hohe Güten Einfluss hat.
