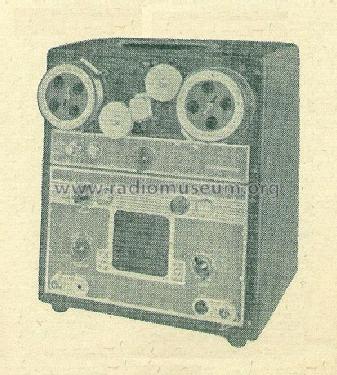

Wirek Typ " A "
Boosey & Hawkes (Wirek); London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Boosey & Hawkes (Wirek); London
- Year
- 1942 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 210218
From service documentation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Wire Recorder (or -Player)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Wirek Typ " A " - Boosey & Hawkes Wirek; London
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13 x 15.5 x 11 inch / 330 x 394 x 279 mm
- Net weight (2.2 lb = 1 kg)
- 57 lb (57 lb 0 oz) / 25.878 kg
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Jan-Ake Ahl. See "Data change" for further contributors.
