Amplificateur ST20 120

Amplificateur ST20 120; Bouyer, Paul (ID = 442513) Ampl/Mixer

Amplificateur ST20 120; Bouyer, Paul (ID = 2566203) Ampl/Mixer

Amplificateur ST20 120; Bouyer, Paul (ID = 2566204) Ampl/Mixer

Amplificateur ST20 120; Bouyer, Paul (ID = 2566205) Ampl/Mixer

Amplificateur ST20 120; Bouyer, Paul (ID = 2566206) Ampl/Mixer

Amplificateur ST20 120; Bouyer, Paul (ID = 2566207) Ampl/Mixer

Amplificateur ST20 120; Bouyer, Paul (ID = 2566208) Ampl/Mixer

Amplificateur ST20 120; Bouyer, Paul (ID = 2566209) Ampl/Mixer
Amplificateur ST20 120; Bouyer, Paul (ID = 440283) Ampl/Mixer Amplificateur ST20 120; Bouyer, Paul (ID = 446963) Ampl/Mixer
Amplificateur ST20 120; Bouyer, Paul (ID = 440284) Ampl/Mixer Amplificateur ST20 120; Bouyer, Paul (ID = 498983) Ampl/Mixer
Amplificateur ST20 120; Bouyer, Paul (ID = 498985) Ampl/Mixer Amplificateur ST20 120; Bouyer, Paul (ID = 498982) Ampl/Mixer
Amplificateur ST20 120; Bouyer, Paul (ID = 440285) Ampl/Mixer Amplificateur ST20 120; Bouyer, Paul (ID = 2523441) Ampl/Mixer
Use red slider bar for more.
Amplificateur ST20 120; Bouyer, Paul (ID = 440283) Ampl/Mixer

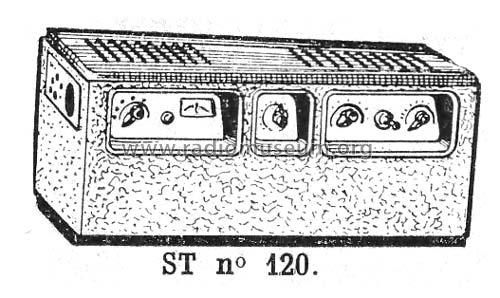

Bouyer, Paul: Amplificateur ST20 120 [Ampl/Mixer] ID = 440283 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificateur ST20 120, Bouyer, Paul (Harmonic Radio); Montauban, Paris

Country:  France
Manufacturer / Brand:  Bouyer, Paul (Harmonic Radio); Montauban, Paris
Year: 1962–1971 Category: Audio Amplifier or -mixer
Valves / Tubes 6: EF86 ECC83 EF86 6L6GC 6L6GC GZ34
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Amplificateur ST20 120 - Bouyer, Paul Harmonic Radio;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 425 x 140 x 185 mm / 16.7 x 5.5 x 7.3 inch
Notes

Ampli PU / Micro, correction de tonalité basculante (breveté). Caractéristiques similaire au ST10 mais puissance de 20 W.

Entrées :

  • 2 x microphone parôle (10 mV, 220 kOhm)
  • 1 x microphone musique (8 mV, 220 kOhm)
  • 1 x pick-up (150 mV, 500 kOhm)

Sorties :

  • 4, 8, 15, 250 et 500 Ohm, ligne 100 Volt

Ausgangsleistung 20 Watt in Gegentakt-Schaltung mit automatischer Gittervorspannungserzeugung, Arbeitspunkt etwa AB-Betrieb entsprechend.
Ruhestromeinstellung über mehrstufigen Netzschalter mit "Totenkopf"-Anzeige.

Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 422.00 FRF
Mentioned in Catalogue Comptoir TSF Sud-Est 1963
Literature/Schematics (1) -- Schematic
Literature/Schematics (2) - - Manufacturers Literature (Tarif 2/68 (DE))

Model page created by Sven Hoffmann. See "Data change" for further contributors.



All listed radios etc. from Bouyer, Paul (Harmonic Radio); Montauban, Paris
Here you find 145 models, 84 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
