• Country
• United States of America (USA)

• Manufacturer / Brand
• Brandes Products Corp.; Newark (NJ) and New York, N.Y.; G.Brandes Inc., New York. N.Y.

• Year
• 1929 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235293

• Number of Tubes
• 8

• Valves / Tubes
• 27 27 27 27 27 71A 71A 80

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 100-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

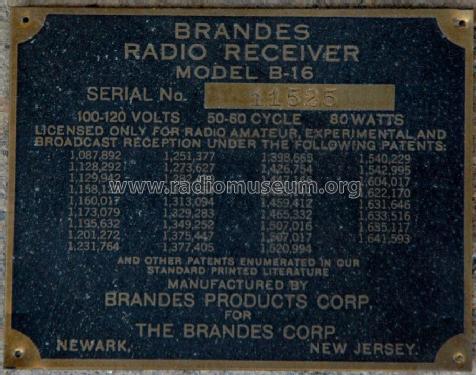

• Model: B16 With Adler-Royal Cabinet - Brandes Products Corp.; Newark

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 25 x 43 x 15 inch / 635 x 1092 x 381 mm

• Net weight (2.2 lb = 1 kg)
• 66 lb (66 lb 0 oz) / 29.964 kg

• Author
• Model page created by Howard Mariotti. See "Data change" for further contributors.
