770GWUK

770GWUK; Braun; Frankfurt (ID = 1820595) Radio 770GWUK; Braun; Frankfurt (ID = 1820596) Radio
770GWUK; Braun; Frankfurt (ID = 1820597) Radio 770GWUK; Braun; Frankfurt (ID = 1820598) Radio
770GWUK; Braun; Frankfurt (ID = 2003578) Radio 770GWUK; Braun; Frankfurt (ID = 2003584) Radio
770GWUK; Braun; Frankfurt (ID = 2003588) Radio
Use red slider bar for more.

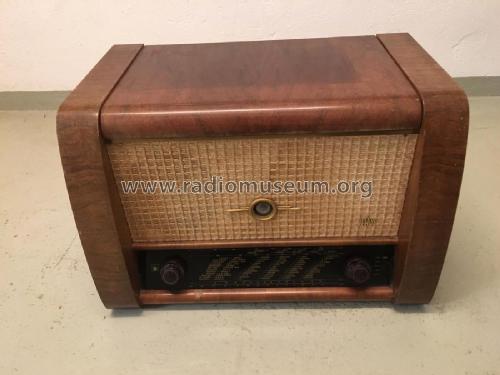

770GWUK; Braun; Frankfurt (ID = 1820595) Radio
Braun; Frankfurt: 770GWUK [Radio] ID = 1820595 750x719
Select picture or schematic to display from thumbnails on the right and click for download.
For model 770GWUK, Braun; Frankfurt:
Ebay-Verk.: brotkasten1, ArtNr.: 301587979753

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UF80 UCH42 UF41 UBC41 UM11 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 460/10,7 kHz
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: 770GWUK - Braun; Frankfurt
External source of data Wiesmüller
Source of data Lange, Schaltungen der Funkindustrie
