Audio 2/2 Ch= TC45/2; Braun; Frankfurt (ID = 891303) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 39: AF106 AF124 AF125 AF126 BC108 AC151 AC152 BFY39 BFY40 AC153 AD131
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 10 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)

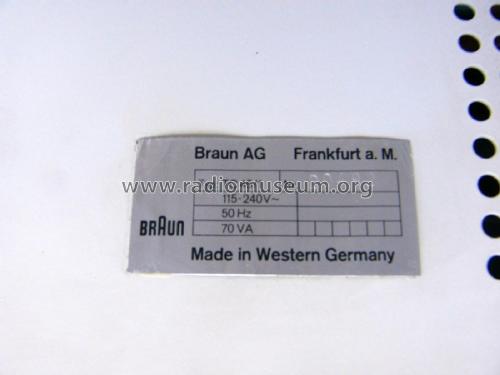

Power type and voltage Alternating Current supply (AC) / 115; 127; 155; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Audio 2/2 Ch= TC45/2 - Braun; Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 650 x 170 x 280 mm / 25.6 x 6.7 x 11 inch
Notes Transistoren (jeweils 1× gelistet): AF106, 2× AF124, 3× AF125, 4× AF126, BC108, 3× AC151, AC152, 12× AC151r, 4× BFY39, 2× BFY40, 2× AC153, 4× AD131.
Rundfunk-Chassis mit eingebautem Stereo-Decoder, Stereo-NF-Verstärker mit 2 Endstufen je 12 W (Sinus);
Phono-Chassis = PS400
Balanceregler mit Zug-Druckschalter für Hinterbandkontrolle eines angeschlossenen Tonbandgerätes.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 1'590.00 DM
Source of data Handbuch VDRG 1966/1967
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
