• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1244

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• KK2 KF4 KBC1 KC3 KDD1

• Main principle
• Superheterodyne (common); ZF/IF 488 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 120 / 2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

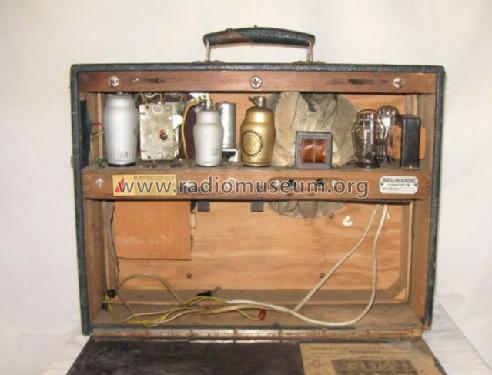

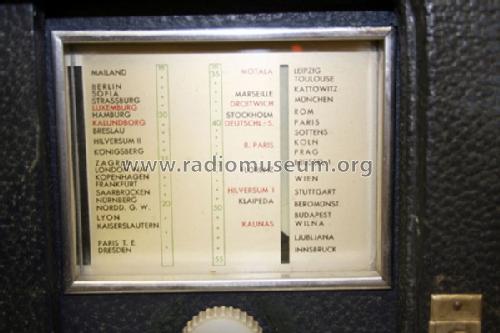

• Model: Koffer Super BSK 238D - Braun; Frankfurt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 170 x 436 mm / 12.8 x 6.7 x 17.2 inch

• Notes
• Beide Schreibweisen kommen vor: BSK und BKS!

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 234.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

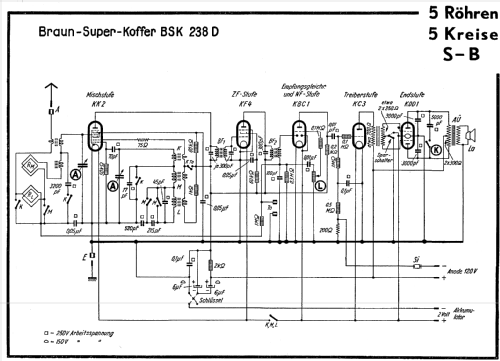

• Circuit diagram reference
• Schenk-Regelien

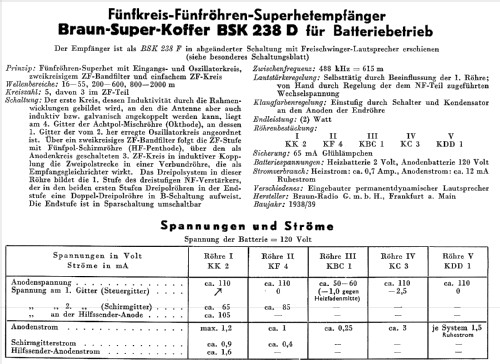

• Literature/Schematics (1)
• Katalog Radio Web

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"

• Other Models

• Here you find 1061 models, 931 with images and 651 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Braun; Frankfurt
