CE251 16 Trans.

CE251; Braun; Frankfurt (ID = 1707604) Radio

CE251; Braun; Frankfurt (ID = 1707605) Radio

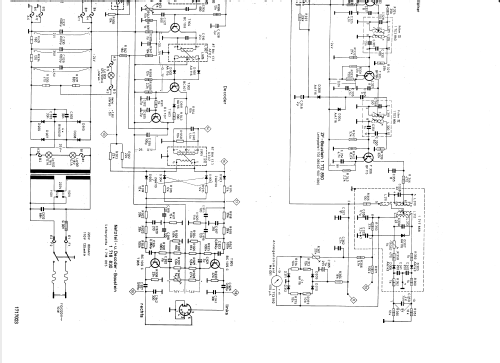

CE251; Braun; Frankfurt (ID = 1707606) Radio

CE251; Braun; Frankfurt (ID = 1707707) Radio

CE251; Braun; Frankfurt (ID = 1707708) Radio

CE251; Braun; Frankfurt (ID = 1707635) Radio

CE251; Braun; Frankfurt (ID = 1141980) Radio

CE251; Braun; Frankfurt (ID = 1141981) Radio

CE251; Braun; Frankfurt (ID = 1142467) Radio

CE251; Braun; Frankfurt (ID = 1707710) Radio
CE251; Braun; Frankfurt (ID = 891373) Radio CE251; Braun; Frankfurt (ID = 891375) Radio

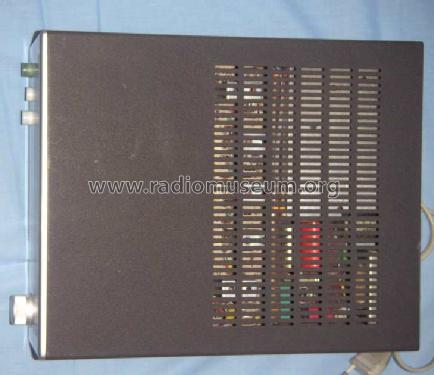

CE251; Braun; Frankfurt (ID = 891374) Radio CE251; Braun; Frankfurt (ID = 330967) Radio
Use red slider bar for more.
CE251; Braun; Frankfurt (ID = 891373) Radio
Braun; Frankfurt: CE251 [Radio] ID = 891373 868x438
Select picture or schematic to display from thumbnails on the right and click for download.
For model CE251 16 Trans., Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1970–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16: BF245 AF106 BF158 BF115 BF184 BC109 BC108 BC107 BA110 AA116 AA143 AA119 Z12 BYX10
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 16 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CE251 [16 Trans.] - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 260 x 110 x 320 mm / 10.2 x 4.3 x 12.6 inch
Notes

Stereo-Hi-Fi-Tuner. Abstimmanzeige mit Instrument.

Gegenüber dem Vorgängermodell CE251 mit 15 Transistoren hat die Variante mit 16 Transistoren einen geänderten Stereo-Decoder.

Jeder Halbleiter-Typ ist einmal gelistet.

Net weight (2.2 lb = 1 kg) 6.1 kg / 13 lb 7 oz (13.436 lb)
Price in first year of sale 788.00 DM
External source of data Erb
Source of data Handbuch VDRG 1970/1971
Mentioned in Handbuch VDRG 1971/1972
Literature/Schematics (1) -- Original-techn. papers.
