AA143

Information - Help
ID = 34466

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Solid-State-Diode   Detector
Identical to AA143
Similar Tubes
Normally replaceable-slightly different:
  AA116 ; OA90
First Source (s)
Mar.1964 : -- Collector info (Sammler)
Base Wires
Filament Solid State
Description Material/Aufbau: Germanium drahtverschweisst;
Form/Case: Allglas, ähnlich DO-29;
Daten/electr.data: I F: 2 mA; U F: 0.3 V; I sp: 20 µA; U sp: 20 V; N: 80 mW; Imax: 60 mA; Umax: 25 V; tmax: 85 °C.
-
Dimensions (WHD)
incl. pins / tip		 5 x 10 x mm / 0.20 x 0.39 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70

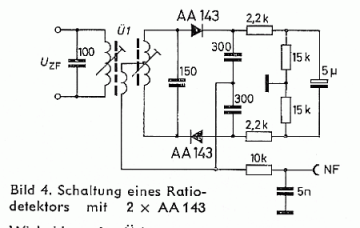

  AA143: Funktechnik 13/68
Egon Strampe

AA143: scc
Christian Schaufelberger
More ...

AA143: DVT 1971 ECA
Günther Stabe † 19.8.20

AA143: Dioden..., Intermetall, 1977/78
Anonymous 10 Collector
More ...
Usage in Models 1= 1964?? ; 1= 1965 ; 1= 1967? ; 2= 1967 ; 1= 1968?? ; 8= 1968 ; 1= 1969?? ; 11= 1969? ; 12= 1969 ; 4= 1970?? ; 1= 1970? ; 11= 1970 ; 2= 1971?? ; 4= 1971? ; 16= 1971 ; 3= 1972?? ; 1= 1972? ; 14= 1972 ; 3= 1973 ; 1= 1974 ; 1= 1975?? ; 2= 1975 ; 1= 1976 ; 3= 1977 ; 1= 1978? ; 2= 1978 ; 2= 1979? ; 1= 1980 ; 1= 1981? ; 1= 9999
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):113
Literature "Das Rundfunkmuseum" Vol. 3 No. 2 | 2018-07
Collection of Wilfried Hofmüller (A)
Collection of Günther Stabe † 19.8.20 (D)
Collection of Christian Schaufelberger (CH)
Collection of Michael Fiedler (D)
Collection of Jacky Parmentier (F)
