Commodore 52 (C52)

Commodore 52 ; Braun; Frankfurt (ID = 11583) Radio

Commodore 52 ; Braun; Frankfurt (ID = 1019750) Radio

Commodore 52 ; Braun; Frankfurt (ID = 1961490) Radio
Commodore 52 ; Braun; Frankfurt (ID = 717392) Radio Commodore 52 ; Braun; Frankfurt (ID = 717393) Radio
Commodore 52 ; Braun; Frankfurt (ID = 717422) Radio Commodore 52 ; Braun; Frankfurt (ID = 44776) Radio
Commodore 52 ; Braun; Frankfurt (ID = 46026) Radio Commodore 52 ; Braun; Frankfurt (ID = 46036) Radio
Commodore 52 ; Braun; Frankfurt (ID = 46037) Radio Commodore 52 ; Braun; Frankfurt (ID = 619967) Radio
Commodore 52 ; Braun; Frankfurt (ID = 619968) Radio Commodore 52 ; Braun; Frankfurt (ID = 619970) Radio
Use red slider bar for more.
Commodore 52 ; Braun; Frankfurt (ID = 717392) Radio
Braun; Frankfurt: Commodore 52 [Radio] ID = 717392 741x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Commodore 52 (C52), Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF91 DK92 DF91 DAF91 DL94
Main principle Superhet with RF-stage; ZF/IF 473 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110-240 / 9 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Commodore 52 - Braun; Frankfurt
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 410 x 300 x 155 mm / 16.1 x 11.8 x 6.1 inch
Notes Eingebaute Rahmenantenne. Cordüberzug.
Der Katalog des Rundfunk-Grosshandels nennt
Commodore 52, das Typschild zeigt C52.
Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
Price in first year of sale 298.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb

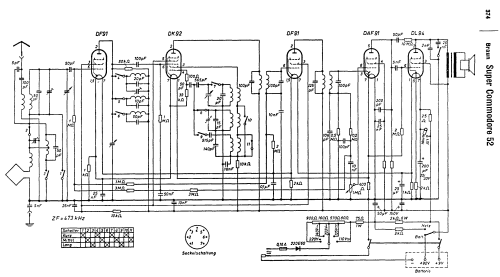

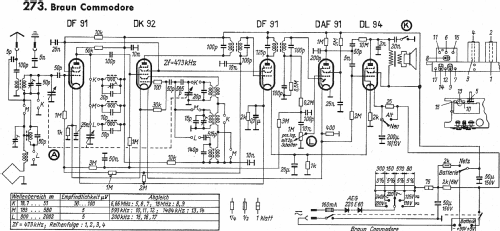

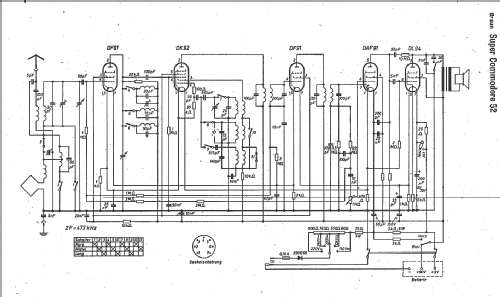

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
