FM Stereo Tuner T501

FM Stereo Tuner T501; Braun; Frankfurt (ID = 1780136) Radio

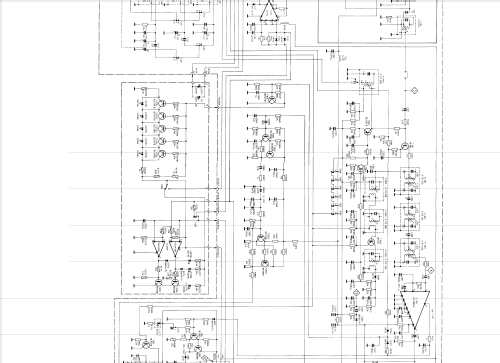

FM Stereo Tuner T501; Braun; Frankfurt (ID = 1780137) Radio

FM Stereo Tuner T501; Braun; Frankfurt (ID = 1780138) Radio

FM Stereo Tuner T501; Braun; Frankfurt (ID = 1780139) Radio
FM Stereo Tuner T501; Braun; Frankfurt (ID = 1658219) Radio FM Stereo Tuner T501; Braun; Frankfurt (ID = 1658220) Radio
FM Stereo Tuner T501; Braun; Frankfurt (ID = 1658221) Radio FM Stereo Tuner T501; Braun; Frankfurt (ID = 1658222) Radio
Use red slider bar for more.
FM Stereo Tuner T501; Braun; Frankfurt (ID = 1658219) Radio
Braun; Frankfurt: FM Stereo Tuner T501 [Radio] ID = 1658219 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Stereo Tuner T501, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Stereo Tuner T501 - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Notes

FM Stereo Tuner T501.
Gehäusevarianten mit schwarzer oder grauer Abdeckung und Front.

Weitgehend baugleich mit dem Schwestergerät T 301. Ausser der geänderten Beschriftung ist lediglich die Leuchtdiode der Senderwahlanzeige grün statt wie beim T 301 rot.

Model page created by a member from D. See "Data change" for further contributors.
