FS-1000; Braun; Frankfurt (ID = 1771744) Television

FS-1000; Braun; Frankfurt (ID = 1771745) Television

FS-1000; Braun; Frankfurt (ID = 1771746) Television

FS-1000; Braun; Frankfurt (ID = 1457567) Television

FS-1000; Braun; Frankfurt (ID = 1457569) Television

FS-1000; Braun; Frankfurt (ID = 1457571) Television

FS-1000; Braun; Frankfurt (ID = 1457573) Television

FS-1000; Braun; Frankfurt (ID = 1457575) Television

FS-1000; Braun; Frankfurt (ID = 1457576) Television

FS-1000; Braun; Frankfurt (ID = 1457581) Television
FS-1000; Braun; Frankfurt (ID = 820039) Television FS-1000; Braun; Frankfurt (ID = 330708) Television
FS-1000; Braun; Frankfurt (ID = 1753501) Television
Use red slider bar for more.
FS-1000; Braun; Frankfurt (ID = 820039) Television
Braun; Frankfurt: FS-1000 [Television] ID = 820039 542x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FS-1000, Braun; Frankfurt:
Q: Braun Desgn Collection 1990

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1967–1969 Category: Television Receiver (TV) or Monitor
Valves / Tubes 13: PL802 PCL86 PCH200 ECC81 PL508 PCF802 PL504 PY88 PCF802 PL509 PY500 GY501 25AP22A or A63-11X
Semiconductors (the count is only for transistors) 32:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: FS-1000 - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 780 x 540 x 540 mm / 30.7 x 21.3 x 21.3 inch
Notes 63-cm-PAL-TV mit satinierter Bildfeldoberfläche, VHF/UHF-Tuner nach PAL B/G.
Chassis von Kuba / Imperial wie beim CK225T.
Price in first year of sale 2'580.00 DM
Source of data Handbuch VDRG 1967/1968
Mentioned in Funkschau (Heft 19 1967)

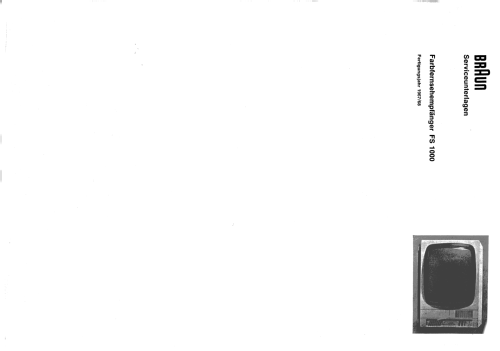

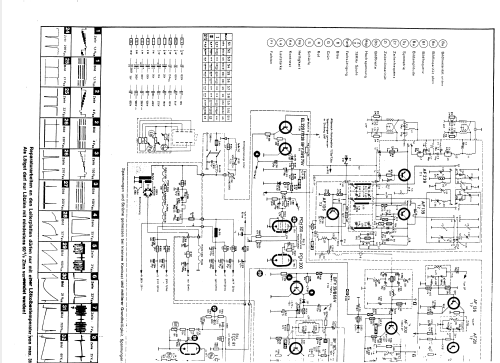

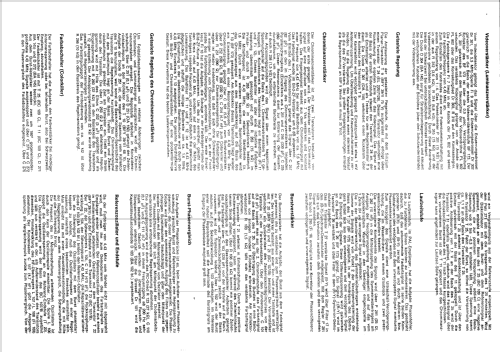

Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Braun; Frankfurt
Here you find 1040 models, 904 with images and 641 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
