Netzuntersatz 250 (NAG-250)

Netzuntersatz 250 ; Braun; Frankfurt (ID = 1233317) Power-S

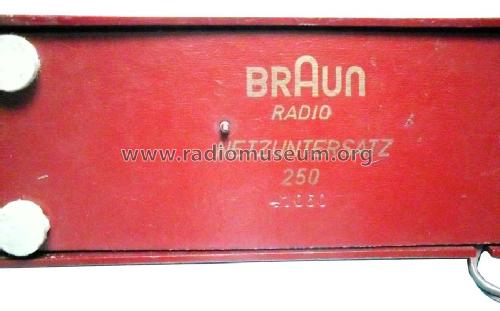

Netzuntersatz 250 ; Braun; Frankfurt (ID = 1233059) Power-S Netzuntersatz 250 ; Braun; Frankfurt (ID = 1233061) Power-S
Netzuntersatz 250 ; Braun; Frankfurt (ID = 2009959) Power-S Netzuntersatz 250 ; Braun; Frankfurt (ID = 2009960) Power-S
Netzuntersatz 250 ; Braun; Frankfurt (ID = 2009961) Power-S Netzuntersatz 250 ; Braun; Frankfurt (ID = 2009962) Power-S
Netzuntersatz 250 ; Braun; Frankfurt (ID = 2009963) Power-S
Use red slider bar for more.
Netzuntersatz 250 ; Braun; Frankfurt (ID = 1233059) Power-S
Braun; Frankfurt: Netzuntersatz 250 [Power-S] ID = 1233059 933x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model Netzuntersatz 250 (NAG-250), Braun; Frankfurt:
Bild von J. Borck.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1954–1956 Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) M20/8 E250C50
Details
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Netzuntersatz 250 - Braun; Frankfurt
Material Plastics (no bakelite or catalin)
Notes Netzuntersatz für Exporter MW und Exporter LW & MW.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
