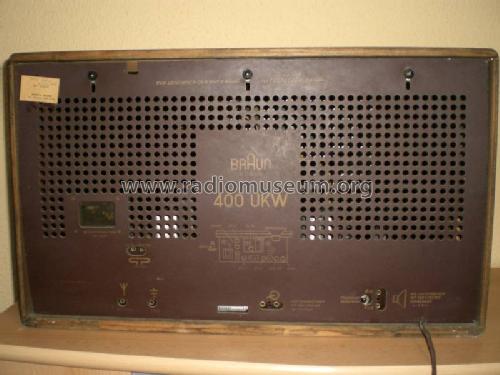

Super 400UKW; Braun; Frankfurt (ID = 434604) Radio Super 400UKW; Braun; Frankfurt (ID = 434606) Radio
Super 400UKW; Braun; Frankfurt (ID = 434607) Radio Super 400UKW; Braun; Frankfurt (ID = 434608) Radio
Use red slider bar for more.
Super 400UKW; Braun; Frankfurt (ID = 48569) Radio
Braun; Frankfurt: Super 400UKW [Radio] ID = 48569 930x590
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 400UKW, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF41 EC92 ECH81 EF41 EM11 EF41 EABC80 EL41
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Super 400UKW - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 380 x 300 mm / 25.2 x 15 x 11.8 inch
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale 398.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
