Empire Mantel 330E Ch= 330

Empire Mantel 330E Ch= 330; Breville; Sydney (ID = 609932) Radio Empire Mantel 330E Ch= 330; Breville; Sydney (ID = 1770657) Radio
Empire Mantel 330E Ch= 330; Breville; Sydney (ID = 1770658) Radio Empire Mantel 330E Ch= 330; Breville; Sydney (ID = 1770659) Radio
Empire Mantel 330E Ch= 330; Breville; Sydney (ID = 1770660) Radio
Use red slider bar for more.
Empire Mantel 330E Ch= 330; Breville; Sydney (ID = 609932) Radio

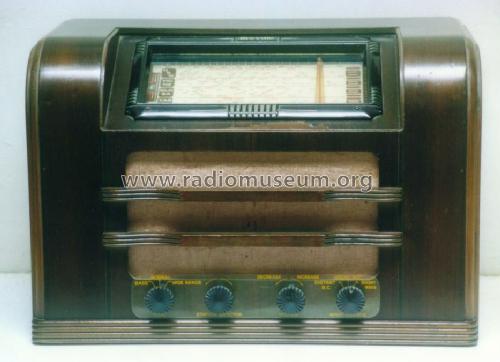

Breville; Sydney: Empire Mantel 330E Ch= 330 [Radio] ID = 609932 933x677
Select picture or schematic to display from thumbnails on the right and click for download.
For model Empire Mantel 330E Ch= 330, Breville; Sydney:
Breville 330E

Country:  Australia
Manufacturer / Brand:  Breville; Sydney
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6U7G 6G8G 6V6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 446 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Empire Mantel 330E Ch= 330 - Breville; Sydney
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 478 x 325 x 265 mm / 18.8 x 12.8 x 10.4 inch
Notes A very similar if not identical model 330M (chassis 330) was sold in 1941. Same chassis was used in 330C "Captain" console. The 330 chassis used switched variable selectivity.
Price in first year of sale 29.00 Aus£

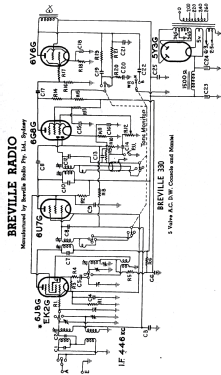

Circuit diagram reference Australian Official Radio Service Manual Vol. V

Model page created by Stuart Irwin. See "Data change" for further contributors.
