Playtime M531

Playtime M531; Breville; Sydney (ID = 2415425) Radio
Use red slider bar for more.
Playtime M531; Breville; Sydney (ID = 2415425) Radio

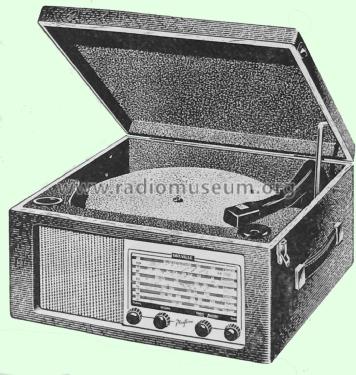

Breville; Sydney: Playtime M531 [Radio] ID = 2415425 1400x1474
Select picture or schematic to display from thumbnails on the right and click for download.
For model Playtime M531, Breville; Sydney:
From brochure.

Country:  Australia
Manufacturer / Brand:  Breville; Sydney
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6BA6 6AV6 6M5 5Y3GT or 6X5GT
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220; 240; 260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Playtime M531 - Breville; Sydney
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15 x 15 x 7 inch / 381 x 381 x 178 mm
Notes

"Announcing the Breville Playtime 240 A.C. electric portable radiogram. Ideal for parties...holidays...in your home or when visiting. The Breville Playtime (Model 531) combines a 5 valve A.C. broadcast receiver and world-famous Record Player unit, in aattractive Vinylite plastic covered "suitcase" cabinet."

Price in first year of sale 48.55 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. X
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 80.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
