- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1970 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 218729
Vista frontale a televisore spento
Vista frontale a televisore acceso

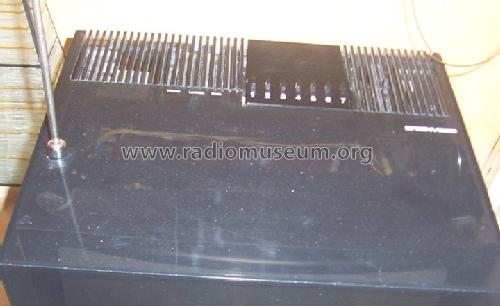

Vista in prospettiva
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- 34
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Black 17" vr - Vega, BP Radio, Brionvega,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 405 x 335 x 320 mm / 15.9 x 13.2 x 12.6 inch
- Notes
-
Televisore in bianco e nero con 7 canali presintonizzabili, sintonia a varicap. Mobile in plexiglass a forma di parallelepipedo nero. A televisore spento non si nota lo schermo televisivo che si evidenzia quando il televisore è acceso. Design Zanuso-Sapper.
- Circuit diagram reference
- Schemario TV , Il Rostro
- Author
- Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
