- Country
- Australia
- Manufacturer / Brand
- Briton Electrical & Radio Pty. Ltd ("Rational Radio"); Sydney, NSW.
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163422

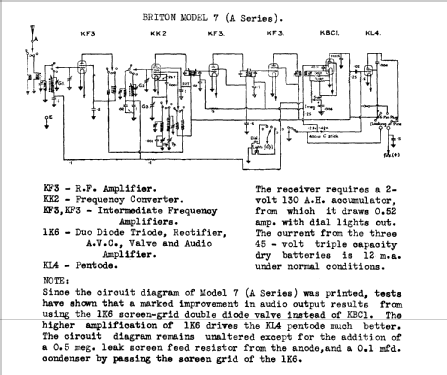

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 462.5 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 135 & 2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 7A [KBC1 tube] - Briton Electrical & Radio Pty.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- There is also a version using a 1K6 instead of KBC1.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I
- Literature/Schematics (1)
- Radio Trade Annual of Australia (1930 Page 221)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
- Other Models
-
Here you find 82 models, 13 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Briton Electrical & Radio Pty. Ltd ("Rational Radio"); Sydney, NSW.
