• Country
• United States of America (USA)

• Manufacturer / Brand
• Brook Electronics Inc.; Elizabeth, N.J.

• Year
• 1948 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 138020

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6SJ7 6SJ7 5692 7A4 7A4 7A4 7A4 7A4 7A4 7N7 2A3 2A3 5U4 5Y3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

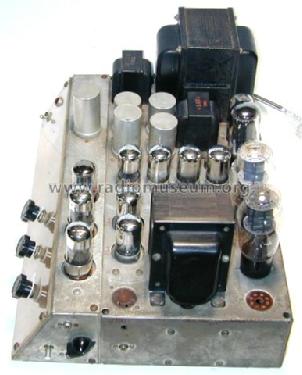

• Model: High Quality Audio Amplifier 10C2-A - Brook Electronics Inc.;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 17 x 8 x 12 inch / 432 x 203 x 305 mm

• Notes

• AC operated High Quality Audio Amplifier with tone compensated pre amplifier, mono.

• Net weight (2.2 lb = 1 kg)
• 18.2 kg / 40 lb 1.4 oz (40.088 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in

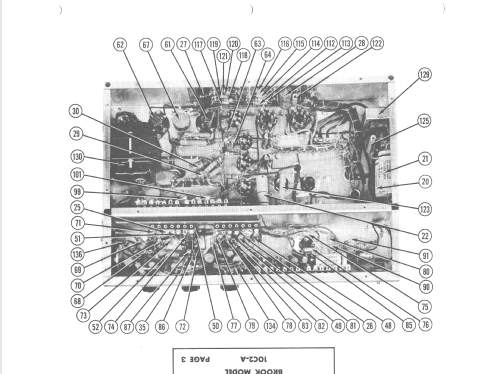

• Photofact Folder, Howard W. SAMS (Set 43, Date 8/48, Folder 4813-7)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
