Browni 12 Transistor High Sensitivity TR 121C (Japan 608)

Browni 12 Transistor High Sensitivity TR 121C ; CBC Charles Brown (ID = 1856864) Radio Browni 12 Transistor High Sensitivity TR 121C ; CBC Charles Brown (ID = 1856865) Radio
Browni 12 Transistor High Sensitivity TR 121C ; CBC Charles Brown (ID = 1856866) Radio Browni 12 Transistor High Sensitivity TR 121C ; CBC Charles Brown (ID = 2053482) Radio
Use red slider bar for more.
Browni 12 Transistor High Sensitivity TR 121C ; CBC Charles Brown (ID = 1856864) Radio

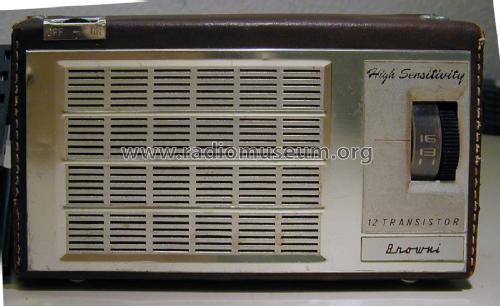

CBC Charles Brown: Browni 12 Transistor High Sensitivity TR 121C [Radio] ID = 1856864 1400x859
Select picture or schematic to display from thumbnails on the right and click for download.
For model Browni 12 Transistor High Sensitivity TR 121C (Japan 608), CBC Charles Brown (Browni, Magnon, Belair); Tokyo

Country:  Japan
Manufacturer / Brand:  CBC Charles Brown (Browni, Magnon, Belair); Tokyo
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 UM2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Browni 12 Transistor High Sensitivity TR 121C - CBC Charles Brown Browni,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 116 x 50 mm / 8.7 x 4.6 x 2 inch
Notes

Browni TR121C AM only built into GENUINE COWHIDE LEATHER with aluminium front panel, variable drum type tuning resistor.

Similar to other models listed under Browni 10 Transistor

Made In Japan 608



Net weight (2.2 lb = 1 kg) 0.920 kg / 2 lb 0.4 oz (2.026 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
