Browni High Sensitivity 10 Transistor TR-101CS (Japan 603)

Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330003) Radio Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330000) Radio
Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330001) Radio Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330002) Radio
Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330004) Radio Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330005) Radio
Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330006) Radio
Use red slider bar for more.
Browni High Sensitivity 10 Transistor TR-101CS ; CBC Charles Brown (ID = 2330003) Radio
CBC Charles Brown: Browni High Sensitivity 10 Transistor TR-101CS [Radio] ID = 2330003 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Browni High Sensitivity 10 Transistor TR-101CS (Japan 603), CBC Charles Brown (Browni, Magnon, Belair); Tokyo:
ebay.com 273592895800 seller lilnao

Country:  Japan
Manufacturer / Brand:  CBC Charles Brown (Browni, Magnon, Belair); Tokyo
Year: 1963 ?? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SA29 2SA29 2SA29 2SA29 2SA29 2SA29 2SB95 2SB95 2SB56 2SB56
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / C: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Browni High Sensitivity 10 Transistor TR-101CS - CBC Charles Brown Browni,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Notes

Below this you find the links to the here not linked samples for typical OEM-production.

See 8tr: Lloyd's, Hacosonic, Nanaola, Summit, Browni, Air Chief, Oritone, Valiant, Nuvox, Selfix , Royal International, York.

See 10tr: Alpha, Avis, York, Air Chief, Kensington, Sandhurst, Super Sonic, Riviera, Granada, Belair, Lifetime, Saturn, Nanaola, Realistic, Truetone.

See 12tr: Browni, Aristo Tone, Granada.

See Seminole 1020 where the tuning capacitor has 2 sections only.

Made in Japan 603 - we still want to find out which manufacturer stands behind 603.
***********************

(

Below this you find the links to the unlinked samples for typical OEM-production.

See 8tr: Lloyd's, Hacosonic, Nanaola, Summit, Browni, Air Chief, Oritone, Valiant, Nuvox, Selfix , Royal International, York.

See 10tr: Alpha, Avis, York, Air Chief, Kensington, Sandhurst, Super Sonic, Riviera, Granada, Belair, Lifetime, Saturn, Nanaola, Realistic, Truetone, St.Moritz.

See 12tr: Browni, Aristo Tone, Granada.

See Seminole 1020 where the tuning capacitor has 2 sections only.

Made in Japan 603

?)

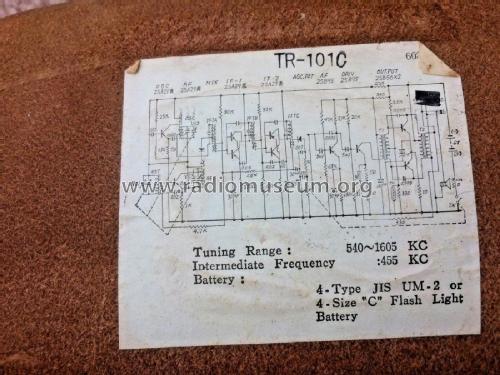

Literature/Schematics (1) - - Manufacturers Literature (Schematic)

Model page created by Aldo Andreani. See "Data change" for further contributors.



All listed radios etc. from CBC Charles Brown (Browni, Magnon, Belair); Tokyo
Here you find 69 models, 60 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
CBC Charles Brown: Browni High Sensitivity 10 Transistor TR-101CS
Threads: 1 | Posts: 1
Hits: 60     Replies: 0
cbc: Very similar or equal models for other brands
Ernst Erb
14.Oct.19
  1

Outsourcing, Rebranding, OEM:
There is an astonishing number of very similar or equal models for other brands. Here are the links to them. Actually Prof. Dr. Aldo Andreani (Italy) was the researcher and creator of this name and link list. I'm pretty sure that he might detect even more during the time and then will enter them as a link into the model page notes. We all can be glad for such work supported by David Erali (USA).

This model is a typical example of OEM-production (Original Equipment Manufacturer). Sometimes this is done with little changes as so called "Badge-Engineering". A similar teamwork is called ODM (Original Design Manufacturer) and for some cases there is only "Contract Manufacturing".

See the model with 8 transistors:
Lloyd's, Hacosonic, Nanaola, Summit, Browni, Air Chief, Oritone, Valiant, Nuvox, Selfix , Royal International, York.

See the model with 10 transistors:
Alpha, Avis, York, Air Chief, Kensington, Sandhurst, Super Sonic, Riviera, Granada, Belair, Lifetime, Saturn, Nanaola, Realistic, Truetone.

See the model with 12 transistors:
Browni, Aristo Tone, Granada.

See Seminole 1020 where the tuning capacitor has 2 sections only.

Japan 603 leads later to the manufacturer of all this. Looking at che Excel it might either be Orion Electric or Realtone Electronics.
To know much more about the Japan code please read this very informative and well researched article by David Erali (USA). It shows two most complete excel sheets.
