Truetone Ten Transistor High Sensitivity DC-3614

Truetone Ten Transistor High Sensitivity DC-3614; Western Auto Supply (ID = 2499263) Radio Truetone Ten Transistor High Sensitivity DC-3614; Western Auto Supply (ID = 2499267) Radio
Truetone Ten Transistor High Sensitivity DC-3614; Western Auto Supply (ID = 2499264) Radio Truetone Ten Transistor High Sensitivity DC-3614; Western Auto Supply (ID = 2499265) Radio

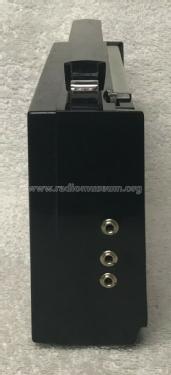

Truetone Ten Transistor High Sensitivity DC-3614; Western Auto Supply (ID = 2499266) Radio Truetone Ten Transistor High Sensitivity DC-3614; Western Auto Supply (ID = 2393634) Radio
Use red slider bar for more.
Truetone Ten Transistor High Sensitivity DC-3614; Western Auto Supply (ID = 2499263) Radio
Western Auto Supply: Truetone Ten Transistor High Sensitivity DC-3614 [Radio] ID = 2499263 1400x1008
Select picture or schematic to display from thumbnails on the right and click for download.
For model Truetone Ten Transistor High Sensitivity DC-3614, Western Auto Supply Co. (Truetone); Kansas City (MO):
ebay.com_293506620880 seller amsord

Country:  United States of America (USA)
Manufacturer / Brand:  Western Auto Supply Co. (Truetone); Kansas City (MO)
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superhet with RF-stage
Wave bands Broadcast only (MW).
Details
Power type and voltage Batteries / addl. power jack / C: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Truetone Ten Transistor High Sensitivity DC-3614 - Western Auto Supply Co.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.5 x 5.25 x 2.25 inch / 216 x 133 x 57 mm
Notes

Similiar to other models listed under Browni

Made in Japan

Model page created by Aldo Andreani. See "Data change" for further contributors.
