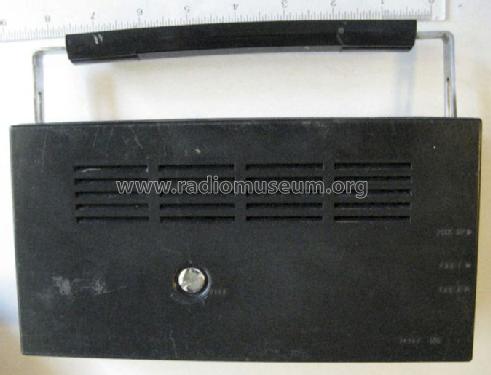

High Sensitivity - 8 Transistor Portable Radio 8TP-902 (Japan 506)

High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 681853) Radio High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 681856) Radio
High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 681855) Radio High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 681854) Radio
High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 681857) Radio High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 747777) Radio
High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 986305) Radio High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 986306) Radio
High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 986307) Radio High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 986308) Radio
Use red slider bar for more.
High Sensitivity - 8 Transistor Portable Radio 8TP-902 ; Nanaola - Nanao (ID = 681853) Radio
Nanaola - Nanao: High Sensitivity - 8 Transistor Portable Radio 8TP-902 [Radio] ID = 681853 933x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model High Sensitivity - 8 Transistor Portable Radio 8TP-902 (Japan 506), Nanaola - Nanao Nippon Radio Co. (NRC)

Country:  Japan
Manufacturer / Brand:  Nanaola - Nanao Nippon Radio Co. (NRC)
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2S93 2SA52 2SA49 2SA53 2SB54 2SB54 2SB56 2SB56
schematic requested
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details

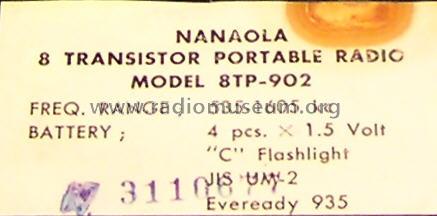

Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: High Sensitivity - 8 Transistor Portable Radio 8TP-902 - Nanaola - Nanao Nippon Radio
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 130 x 55 mm / 8.7 x 5.1 x 2.2 inch
Notes

8 Toshiba Transistoren

Similar to other models listed under Browni

Made in Japan 506



Net weight (2.2 lb = 1 kg) 0.830 kg / 1 lb 13.3 oz (1.828 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Nanaola - Nanao Nippon Radio Co. (NRC)
Here you find 28 models, 26 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nanaola - Nanao: High Sensitivity - 8 Transistor Portable Radio 8TP-902
Threads: 1 | Posts: 1
Hits: 1952     Replies: 0
nanao: 8TP-902; 8 Transistor Portable Radio
John Allen
01.Oct.10
  1

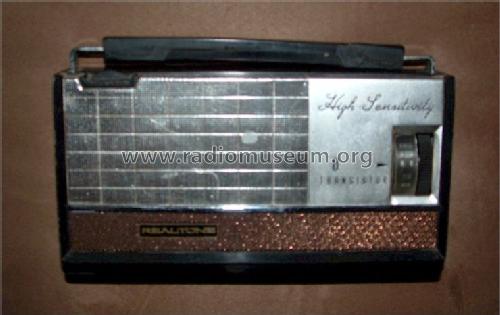

It should be noted that this radio was sold under the name of Realtone in Canada.


Nanaola - Nanao: High Sensitivity - 8 Transistor Portable Radio 8TP-902
