• Country
• United States of America (USA)

• Manufacturer / Brand
• Brunswick-Balke-Collender Co.

• Year
• 1927/1928

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34790

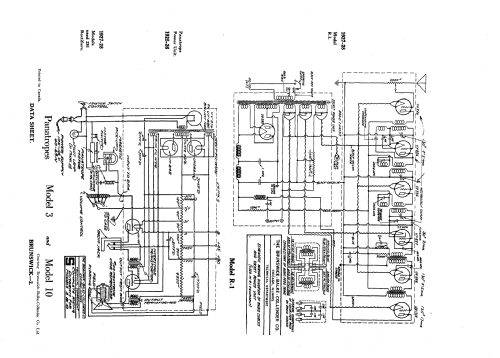

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UX226 UX226 UX226 UY227 UX226 UX171A UX280

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

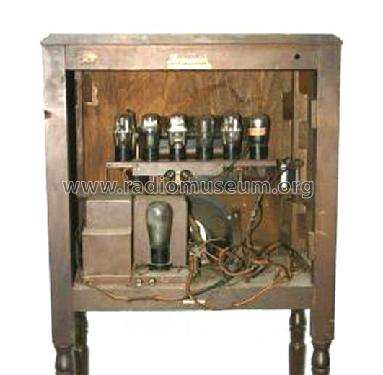

• Model: R-1 - Brunswick-Balke-Collender Co.

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• One dial (primary tuning control knob) . Maybe used with Panatrope Power Unit (view schematic).

• Price in first year of sale
• 107.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Radio College of Canada (RCC)

• Literature/Schematics (2)
• Rider's Perpetual, Volume 3 = 1933 and before

• Other Models

• Here you find 101 models, 33 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
