A11 UA25; BSR Monarch; Great (ID = 191831) R-Player
BSR Monarch; Great: A11 UA25 [R-Player] ID = 191831 917x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model A11 UA25, BSR (Monarch); Great Britain

Country:  Great Britain (UK)
Manufacturer / Brand:  BSR (Monarch); Great Britain
Brand

Birmingham Sound Reproducers
Year: 1968 ?? Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: A11 UA25 - BSR Monarch; Great Britain
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 335 x 140 x 285 mm / 13.2 x 5.5 x 11.2 inch
Notes

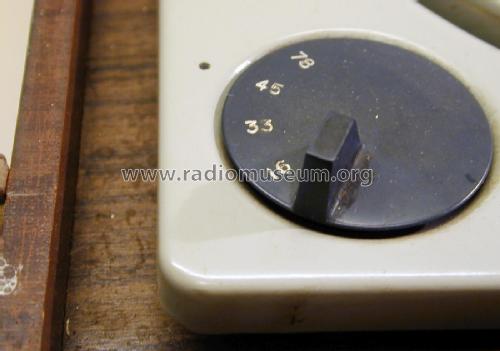

Geschwindigkeiten 16/33/45/78 UpM, Spaltpolmotor (asynchron).

Auch bekannt ist dieses Chassis im Holzgehäuse als Wechsler ohne Herstellerbezeichung, Abmessungen 38x18x32 cm, Gewicht 5,3 kg

Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)

Model page created by a member from D. See "Data change" for further contributors.
