Qualiton, Revue M10

Qualiton, Revue M10; Budapesti (ID = 2383847) R-Player Qualiton, Revue M10; Budapesti (ID = 2383844) R-Player
Qualiton, Revue M10; Budapesti (ID = 2383849) R-Player Qualiton, Revue M10; Budapesti (ID = 2383838) R-Player
Qualiton, Revue M10; Budapesti (ID = 429999) R-Player
Use red slider bar for more.
Qualiton, Revue M10; Budapesti (ID = 2383847) R-Player
Budapesti: Qualiton, Revue M10 [R-Player] ID = 2383847 1385x1253
Select picture or schematic to display from thumbnails on the right and click for download.

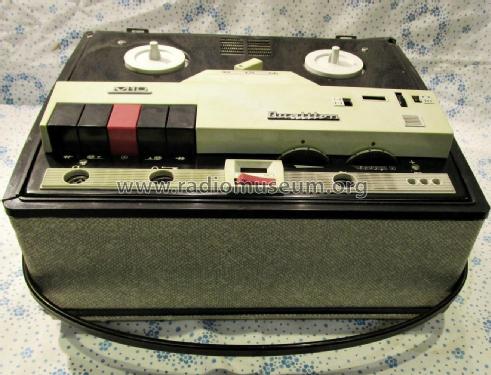

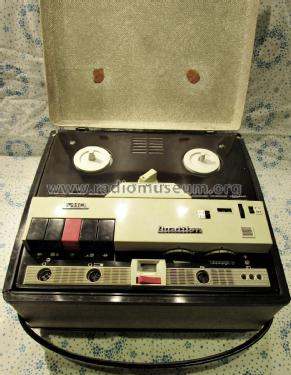

For model Qualiton, Revue M10, Budapesti Rádiótechnikai Gyár (BRG)

Country:  Hungary
Manufacturer / Brand:  Budapesti Rádiótechnikai Gyár (BRG)
Year: 1966 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF86 ECC85 EL84 EM81
Semiconductors (the count is only for transistors) 2:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Qualiton, Revue M10 - Budapesti Rádiótechnikai Gyár
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 355 x 325 x 165 mm / 14 x 12.8 x 6.5 inch
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 4'900.00 HUF
Mentioned in Radiotechnika 2/67 (H)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1967-69

Model page created by Gabriel Toth. See "Data change" for further contributors.
