All Transistor 290P Series (292 and others)

Bulova Watch Corp.; Woodside (NY)

Datos

Foro

Imágenes

Colecciones

País
Estados Unidos

Fabricante / Marca
Bulova Watch Corp.; Woodside (NY)

Año
1957 ?

Categoría
Radio - o Sintonizador pasado WW2

Radiomuseum.org ID
106572

Imágenes
Esquemas

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 2197859) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)
Front view swiveled right

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 258084) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 869468) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 869483) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 1240444) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)
Etsy Shop BewitchingVintage Item 100258254

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 1240445) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)
Etsy Shop BewitchingVintage Item 100258254

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 1451575) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 1972312) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 2197857) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)

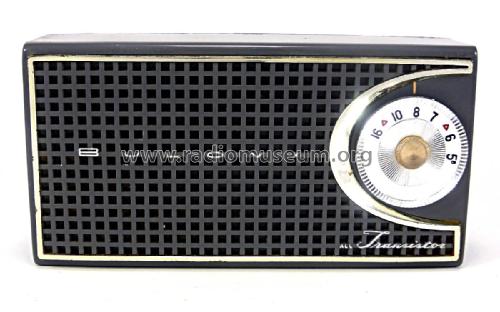

Frontal view

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 2197858) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)
Front view swiveled left

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 2197860) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)
Back

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 2197861) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)
Interior

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 2197862) Radio — Bulova Watch Corp.; All Transistor 290P Series (1)
Label

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 3288315) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)
ebay.com_287622720526 seller packaraticus

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 3288316) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)
ebay.com_287622720526 seller packaraticus

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 3288317) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)
ebay.com_287622720526 seller packaraticus

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 3288318) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)
ebay.com_287622720526 seller packaraticus

All Transistor 290P Series ; Bulova Watch Corp.; (ID = 3288729) Radio — Bulova Watch Corp.; All Transistor 290P Series (2)

Especificaciones técnicas

Numero de transistores
4

Semiconductores

Principio principal
Superheterodino en general; ZF/IF 455 kHz

Gama de ondas
OM (onda media) solamente

Tensión de funcionamiento
Pilas / 1 x 9 Volt

Altavoz
Altavoz dinámico (de imán permanente)

Material
Plástico moderno (Nunca bakelita o catalina)

de Radiomuseum.org
Modelo: All Transistor 290P Series - Bulova Watch Corp.; Woodside

Forma
Portátil de bolsillo , menor de 20cm.

Ancho, altura, profundidad
5.5 x 2.38 x 1.5 inch / 140 x 60 x 38 mm

Anotaciones
Three of the four transistors are early Raytheon blue transistors and include: CK760, CK766, 2N132 and 2N631.

Model 292 is ebony.

Same manual as 270 hand, 270 pcb, 620, 640. The schematic of all these series is similar.

Procedencia de los datos
- - Data from my own collection

Mencionado en
-- Original prospect or advert

Documentación / Esquemas (1)
Transistor Radios (Model info on page 28)

Documentación / Esquemas (2)
Collector's Guide To TrR1 Bunis trans.94 (Model info and picture on page 52-53)

Documentación / Esquemas (3)
Transistor Radios 1954-68 (Model info and picture on page 19)

Autor
Modelo creado por Peter Hoddow. Ver en "Modificar Ficha" los participantes posteriores.
