830

830 ; Bulova Watch Corp.; (ID = 2163165) Radio 830 ; Bulova Watch Corp.; (ID = 258077) Radio
830 ; Bulova Watch Corp.; (ID = 454436) Radio 830 ; Bulova Watch Corp.; (ID = 454435) Radio
830 ; Bulova Watch Corp.; (ID = 454437) Radio 830 ; Bulova Watch Corp.; (ID = 454438) Radio
830 ; Bulova Watch Corp.; (ID = 454610) Radio 830 ; Bulova Watch Corp.; (ID = 698971) Radio
830 ; Bulova Watch Corp.; (ID = 2163164) Radio 830 ; Bulova Watch Corp.; (ID = 2163166) Radio
Use red slider bar for more.
830 ; Bulova Watch Corp.; (ID = 2163165) Radio
Bulova Watch Corp.;: 830 [Radio] ID = 2163165 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 830, Bulova Watch Corp.; Woodside (NY):

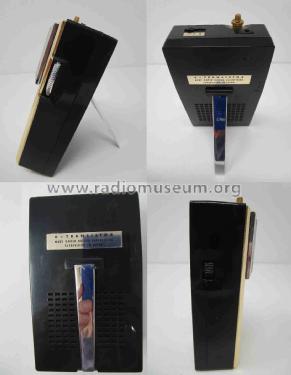

Front swivel right

Country:  United States of America (USA)
Manufacturer / Brand:  Bulova Watch Corp.; Woodside (NY)
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out
from Radiomuseum.org Model: 830 - Bulova Watch Corp.; Woodside
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 64 x 100 x 32 mm / 2.5 x 3.9 x 1.3 inch
Notes

With alarm clock. Alarm clock is a manual wind wrist watch movement made by Citizen

Made in Japan

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 51.00 $
Source of data - - Manufacturers Literature
Mentioned in -- Original prospect or advert

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Bulova Watch Corp.; Woodside (NY)
Here you find 106 models, 93 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
