• Year
  • 1950 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 217818

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

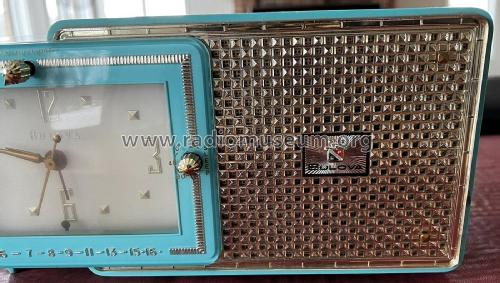

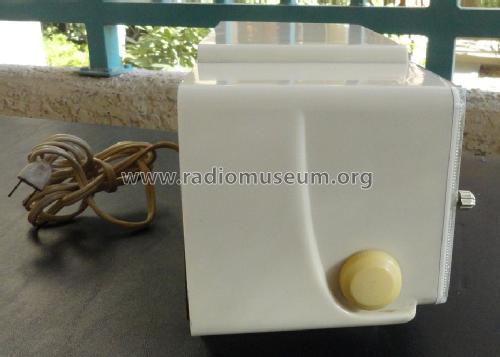

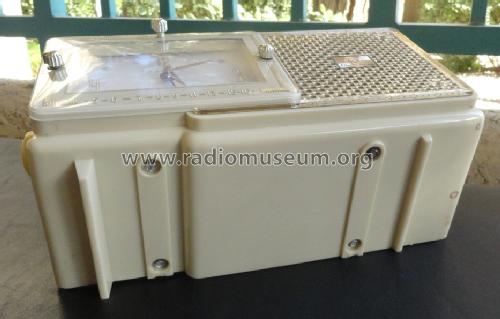

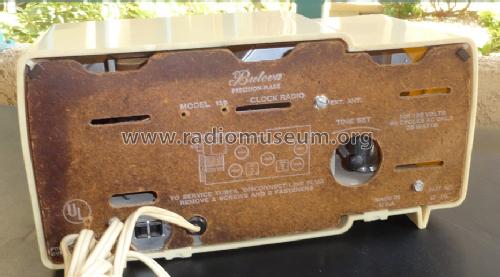

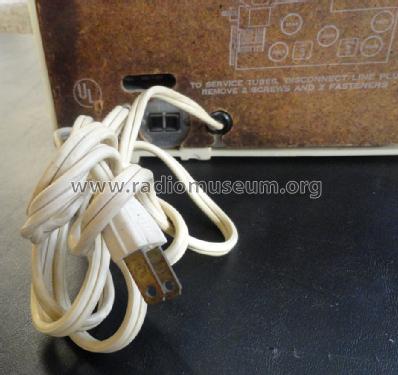

  • Model: Clock Radio 120 - Bulova Watch Corp.; Woodside
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • Bulova 5-Tube AM Table Top Clock Radio Model 120.
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
