- Country
- Great Britain (UK)
- Manufacturer / Brand
- Burndept Ltd. London
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103200
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Valves / Tubes
- VP1321 SP13C Pen36C 1D5_rectifier
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 252 - Burndept Ltd. London
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- The same chassis is fitted to the Vidor 254 table radio.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

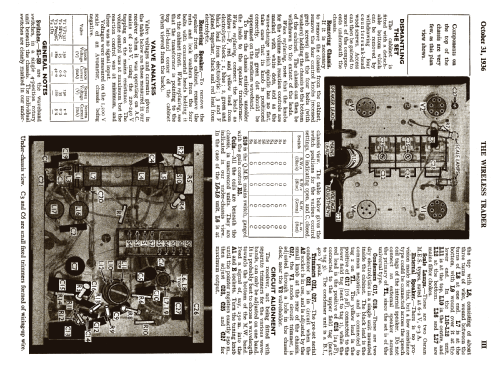

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (155)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
