AC31

AC31; Bush Radio; London (ID = 529706) Radio

AC31; Bush Radio; London (ID = 529707) Radio

AC31; Bush Radio; London (ID = 1001133) Radio

AC31; Bush Radio; London (ID = 1001135) Radio
AC31; Bush Radio; London (ID = 192237) Radio AC31; Bush Radio; London (ID = 775984) Radio
AC31; Bush Radio; London (ID = 192234) Radio AC31; Bush Radio; London (ID = 192233) Radio
AC31; Bush Radio; London (ID = 192236) Radio AC31; Bush Radio; London (ID = 775985) Radio
AC31; Bush Radio; London (ID = 775986) Radio AC31; Bush Radio; London (ID = 775987) Radio
AC31; Bush Radio; London (ID = 775988) Radio
Use red slider bar for more.
AC31; Bush Radio; London (ID = 192237) Radio
Bush Radio; London: AC31 [Radio] ID = 192237 452x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC31, Bush Radio; London:
EbayGB user kajpon 6612167156

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EBF80 EL41 EZ41
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-127, 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: AC31 - Bush Radio; London
Material Wooden case

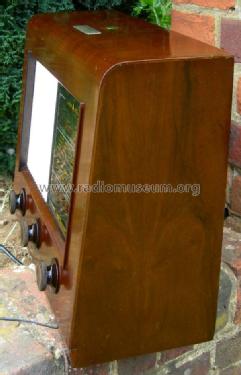

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16 x 13 x 6 inch / 406 x 330 x 152 mm
Notes Similar to the AC/DC DAC31 model.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Bush Radio; London
Here you find 343 models, 270 with images and 228 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
