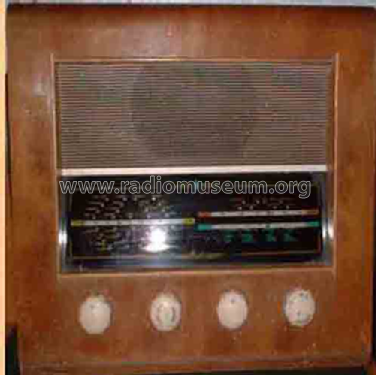

Bush Radio; London: DAC41 [Radio] ID = 1020256 501x499
Select picture or schematic to display from thumbnails on the right and click for download.
For model DAC41, Bush Radio; London:
Internet (Workshop), Con autorización para usar las fotografias

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1954/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH42 UBF80 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: DAC41 - Bush Radio; London
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 408 x 340 x 195 mm / 16.1 x 13.4 x 7.7 inch
Source of data -- Collector info (Sammler)

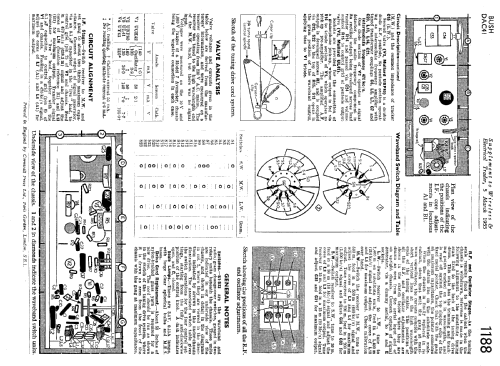

Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1188)
