EBS24 with UM4

EBS24; Bush Radio; London (ID = 1904178) Radio
EBS24; Bush Radio; London (ID = 2399783) Radio EBS24; Bush Radio; London (ID = 2399784) Radio
EBS24; Bush Radio; London (ID = 2399787) Radio EBS24; Bush Radio; London (ID = 2324740) Radio
EBS24; Bush Radio; London (ID = 2324733) Radio EBS24; Bush Radio; London (ID = 2324734) Radio
EBS24; Bush Radio; London (ID = 2324735) Radio EBS24; Bush Radio; London (ID = 2324736) Radio
EBS24; Bush Radio; London (ID = 2324737) Radio EBS24; Bush Radio; London (ID = 2324738) Radio
Use red slider bar for more.
EBS24; Bush Radio; London (ID = 2399783) Radio

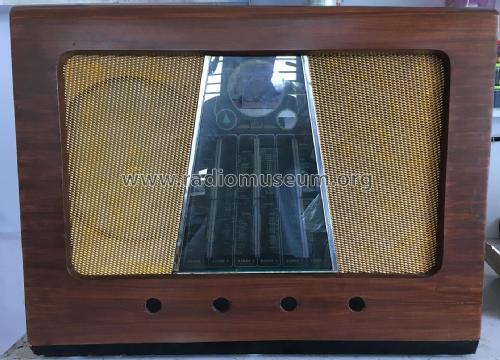

Bush Radio; London: EBS24 [Radio] ID = 2399783 1300x1001
Select picture or schematic to display from thumbnails on the right and click for download.
For model EBS24 with UM4, Bush Radio; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UF41 UCH42 UF41 UBC41 UM4 UL41 UY41
Main principle Superhet with RF-stage; 2 AF stage(s); Export model
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 40-100Hz: 100; 127; 200; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: EBS24 [with UM4] - Bush Radio; London
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

There is also a Bush EBS24 with UM34 magic eye.

Reception ranges: 1 BC and 5 shortwave bandspread ranges:

  • BC (MW): 524 - 1750 kHz
  • SW1: 1.75 - 5.9 MHz
  • SW2: 5.9 - 9.05 MHz
  • SW3: 9.05 - 13.7 MHz
  • SW4: 13.7 - 20.25 MHz
  • SW5: 20.25 - 30.0 MHz
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Dirk Bladt. See "Data change" for further contributors.



All listed radios etc. from Bush Radio; London
Here you find 343 models, 270 with images and 228 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Bush Radio; London: EBS24
Threads: 1 | Posts: 3
Hits: 496     Replies: 2
Bush EBS 24
Uday Kalburgi
04.Dec.18
  1

Hi,

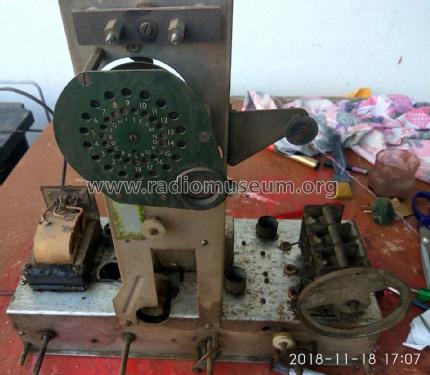

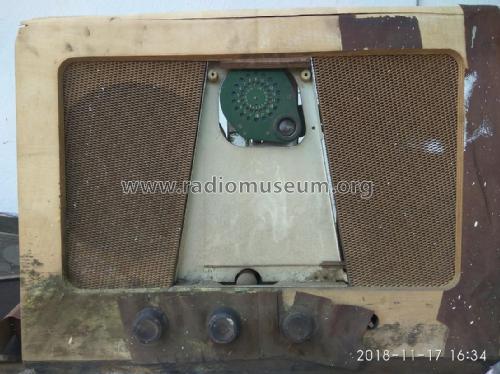

Recently i collected a London Bush EBS 24 set. The cabinet is in ver bad condition, needs to rebuild.

This has very peculiar band indicater in circular disk. Unfortunately the cord is broken and I need some guideance for restoring it, for dial cord and band indicator.

Regards

Uday K

Bangalore India

Attachments

Michael Watterson
04.Dec.18
  2

It's a variation of the Teleflic on some other Bush models. I suspect the EBS4 is mainly different in the scale and cabinet to your EBS24.

What valves/tubes does yours use?

From the SW45 notes

"The Bush Teleflic is mechanical logging device with a rotary optical readout, letters and numbers with a full sweep of the numbers for each letter. It is driven from the tuning mechanism. It was intended to make it easier to retune to specific stations. It has no electronics other than back light and it is not a "bandspread" mechanism nor any effect on selectivity. It is on at least the SW45, BA53, BA53 Export, EBS4, BA63 and PB53 models. The  Teleflic lamp is only on when Shortwave is selected."

I have the SW45 though I've not yet restored it.

Uday Kalburgi
05.Dec.18
  3

Thank You So Much Sir,

I started the restoration. It uses 7 vales  - UF41, UCH42, UF41, UBC41, UM4 UL41 and UY41,

Probably once I restore Radio and Cabinet part, i will seek your advise on the dial cord part

Regadrs

uday K








Bush Radio; London: EBS24
End of forum contributions about this model
