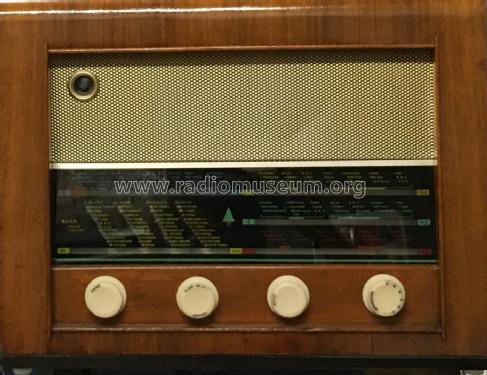

EBS35; Bush Radio; London (ID = 1837729) Radio
Bush Radio; London: EBS35 [Radio] ID = 1837729 990x815
Select picture or schematic to display from thumbnails on the right and click for download.
For model EBS35, Bush Radio; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UF41 UCH42 UF41 UBC41 UM4 UL41 UY41
Main principle Superhet with RF-stage; 2 AF stage(s); Export model
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 210; 230; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: EBS35 - Bush Radio; London
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 390 x 220 mm / 19.7 x 15.4 x 8.7 inch
Notes

Bush EBS35 is an export model.

The UF41 UCH42 UF41 UBC41 UM4 UL41 UY41  are listed for EU35 (AC/DC) and BS35 (AC).

At least one source lists EF41 UCH42 EF41 EBC41 EM4 EL41 EZ40

Medium Wave 525–1604 Kc/s
Short Wave 4 3.1–9.25 Mc/s
Short Wave 3 9.25–14.75 Mc/s
Short Wave 2 14.75–21.25 Mc/s
Short Wave 1 21.25–28.0 Mc/s  (11m)

The Irish version (BS35) replaces 11m band with LW

Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)

Model page created by José Manuel Silvestre. See "Data change" for further contributors.
