For model RP20, Bush Radio; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1957 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: EBC81 EL84 EZ80
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110 or 210 or 230 or 250 Volt
Loudspeaker 2 Loudspeakers
Power out 2.8 W (unknown quality)
from Radiomuseum.org Model: RP20 - Bush Radio; London
Material Leather / canvas / plastic - over other material
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 370 x 190 x 370 mm / 14.6 x 7.5 x 14.6 inch
Notes

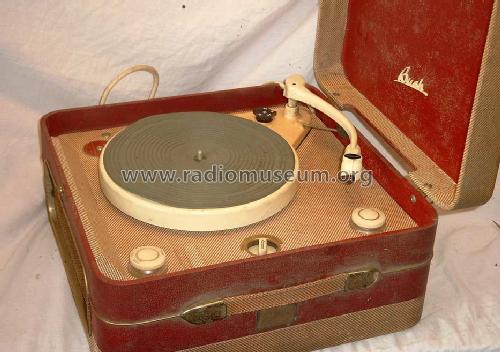

A portable record player with a 2.8 watt valve amplifier and a 4 speed Garrard 4SP manual turntable with a turnover crystal pick-up. With a 6 x 4 inch loudspeaker plus an electrostatic tweeter. Voltage selector on the deck. Same chassis as the Bush RP21 which is fitted with a 4 speed Garrard RC120/4H auto changer

Net weight (2.2 lb = 1 kg) 17 lb 0 oz (17 lb) / 7.718 kg
Source of data - - Data from my own collection
Literature/Schematics (1) - - Manufacturers Literature (Bush Service Instructions for the Bush RP20/RP21 dated Oct 1957)

Model page created by Hugo Sneyers. See "Data change" for further contributors.
