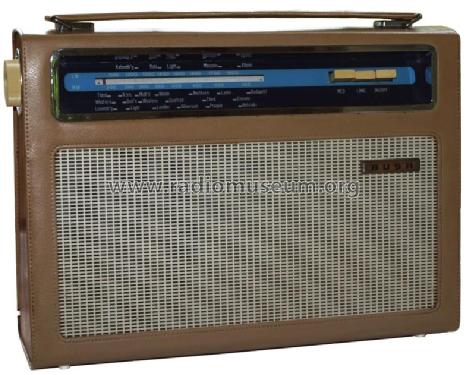

TR112; Bush Radio; London (ID = 636069) Radio
Bush Radio; London: TR112 [Radio] ID = 636069 800x631
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR112, Bush Radio; London:
Bush TR112

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117 AF117 AF117 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / PP9: 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: TR112 - Bush Radio; London
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13.5 x 9.5 x 3.75 inch / 343 x 241 x 95 mm
Notes

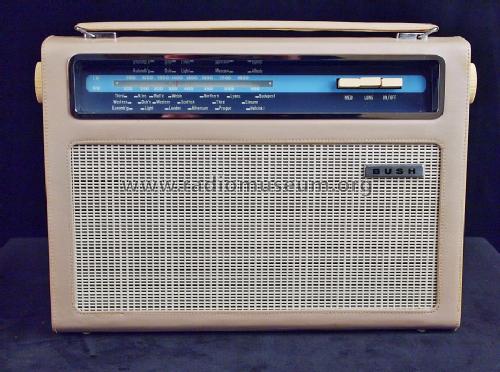

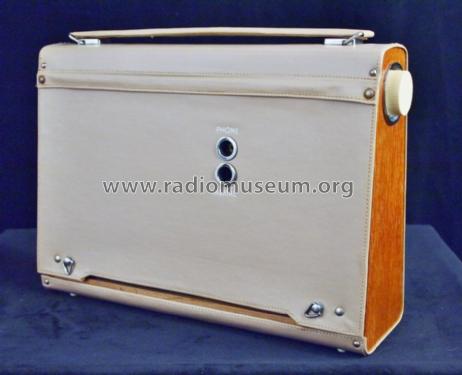

A battery powered portable seven transistor radio covering MW (187-570 metres) and LW (1070-1900 metres).  Elliptical Loudspeaker 6 x 4 inch (15 x 10 cm). Sockets for car aerial and earphone. Released February 1964, price £17 19s 6d plus Purchase tax.

The chassis is similar to that in the Bush TR102 model.

Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1693 dated 6 March 1965)

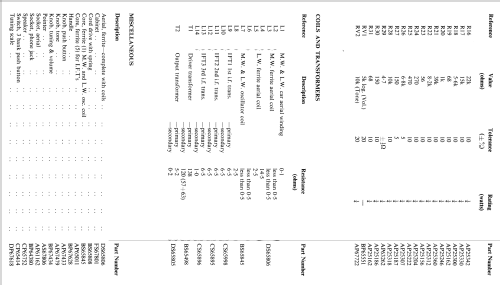

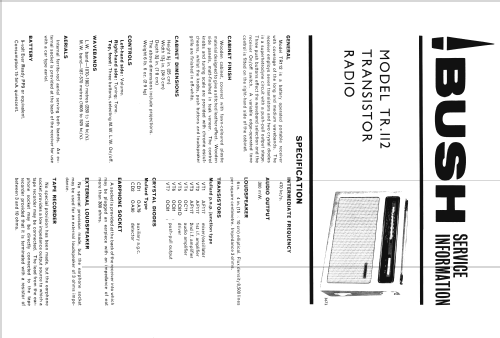

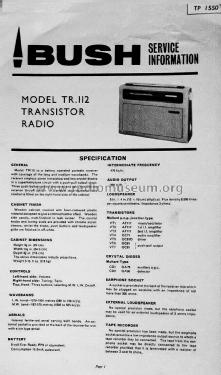

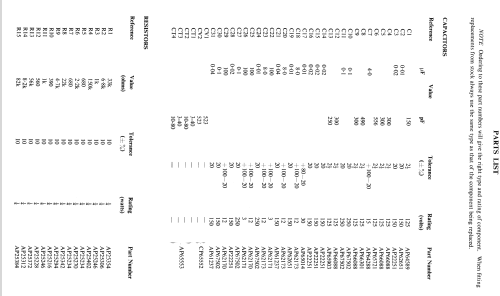

Literature/Schematics (2) - - Manufacturers Literature (Bush Service Information Model TR112)

Model page created by Peter Hoddow. See "Data change" for further contributors.
