VHF70; Bush Radio; London (ID = 2057122) Radio
Bush Radio; London: VHF70 [Radio] ID = 2057122 1400x1141
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF70, Bush Radio; London:
Many thanks to Howard Craven for selling me this fine piece of work.

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF89 UF89 UABC80 UL84 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: VHF70 - Bush Radio; London
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12.5 x 9.75 x 7 inch / 318 x 248 x 178 mm
Notes

Released September 1958, price £15 17s 6d plus purchase tax. Socket for FM aerial.

6 x 4 inch elliptical loudspeaker.

Net weight (2.2 lb = 1 kg) 10.125 lb (10 lb 2 oz) / 4.597 kg
Price in first year of sale 22.00 GBP
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.

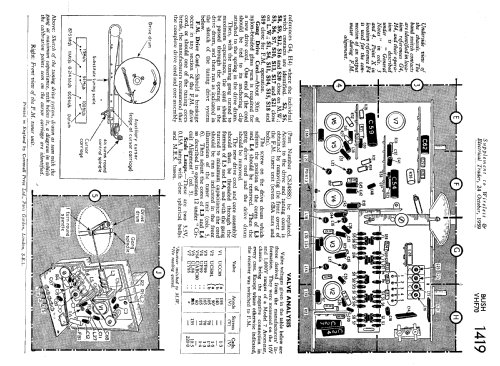

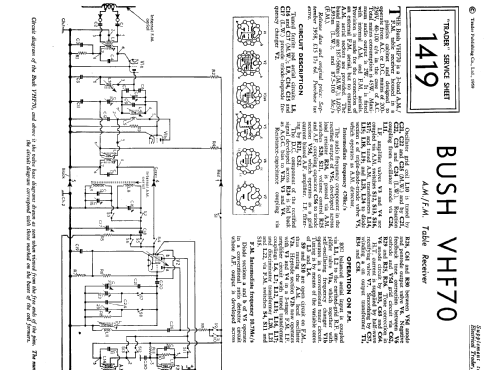

Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) ((1419))

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Bush Radio; London
Here you find 342 models, 267 with images and 228 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
