Transworld VTR188

Transworld VTR188; Bush Radio; London (ID = 2304706) Radio

Transworld VTR188; Bush Radio; London (ID = 2304707) Radio

Transworld VTR188; Bush Radio; London (ID = 2304708) Radio

Transworld VTR188; Bush Radio; London (ID = 2304709) Radio

Transworld VTR188; Bush Radio; London (ID = 2304710) Radio

Transworld VTR188; Bush Radio; London (ID = 2304711) Radio

Transworld VTR188; Bush Radio; London (ID = 2304712) Radio
Transworld VTR188; Bush Radio; London (ID = 1488395) Radio Transworld VTR188; Bush Radio; London (ID = 1488396) Radio
Transworld VTR188; Bush Radio; London (ID = 1488397) Radio Transworld VTR188; Bush Radio; London (ID = 1488403) Radio
Use red slider bar for more.
Transworld VTR188; Bush Radio; London (ID = 1488395) Radio
Bush Radio; London: Transworld VTR188 [Radio] ID = 1488395 933x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transworld VTR188, Bush Radio; London:
with permission of owner

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: 2SC784 2SC785 2SC394 2SC394 2SC380 2SC380 2SC380 2SC373 2SB186 2SB186 2SB405 2SB405
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 240 / D: 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.55 W (unknown quality)
from Radiomuseum.org Model: Transworld VTR188 - Bush Radio; London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 180 x 104 mm / 12.6 x 7.1 x 4.1 inch
Notes

Portable transistor radio with five wavebands:

  • LW 150kHz - 285kHz (2000-1050 metres)
  • MW 1620kHz - 515kHz (185 - 582 metres)
  • SW1 5.8MHz - 10.2MHz (31, 41, & 49 metre bands)
  • SW2 10.2MHz - 20MHz (16, 19, & 25 metre bands)
  • VHF 87.5MHz - 104MHz

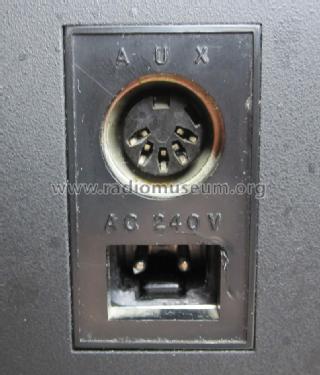

The 240 volt mains socket is not the standard IEC C7, the pitch of the pins is approximately 7mm, width of plug is approximately 14mm.

Transistors with Suffix:
2SC784-O, 2SC785-O, 2× 2SC394-Y, 2× 2SC380A-O, 2SC380A-R, 2SC373, 2× 2SB186A, 2× 2SB405.

Similar to the Murphy BA890 model.



Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Literature/Schematics (1) -- Original-techn. papers.

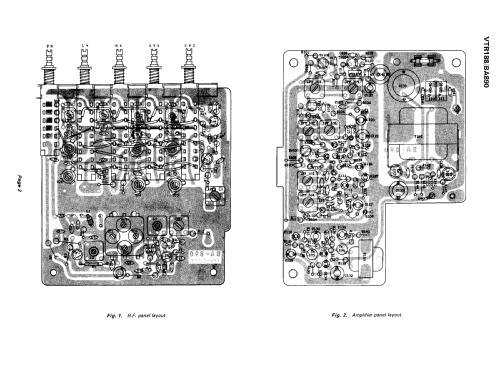

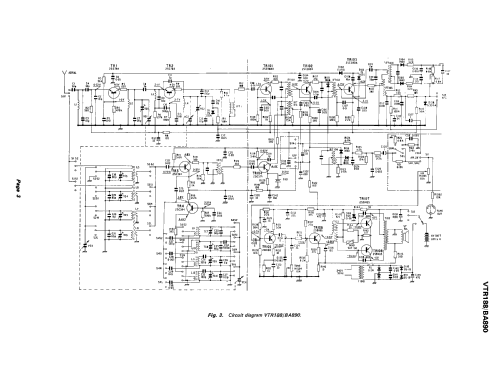

Literature/Schematics (2) - - Manufacturers Literature (Bush Murphy Service Information TP1888 Models Bush VTR188 Murphy BA890 dated 1/1/75)

Model page created by Howard Craven. See "Data change" for further contributors.
