VTR225

VTR225; Bush Radio; London (ID = 2301636) Radio

VTR225; Bush Radio; London (ID = 2301637) Radio

VTR225; Bush Radio; London (ID = 2301638) Radio

VTR225; Bush Radio; London (ID = 2301639) Radio

VTR225; Bush Radio; London (ID = 2301640) Radio

VTR225; Bush Radio; London (ID = 2301641) Radio
VTR225; Bush Radio; London (ID = 2089928) Radio VTR225; Bush Radio; London (ID = 2089929) Radio
VTR225; Bush Radio; London (ID = 2089930) Radio VTR225; Bush Radio; London (ID = 2089931) Radio
VTR225; Bush Radio; London (ID = 2089932) Radio VTR225; Bush Radio; London (ID = 2089933) Radio
Use red slider bar for more.
VTR225; Bush Radio; London (ID = 2089928) Radio
Bush Radio; London: VTR225 [Radio] ID = 2089928 1024x790
Select picture or schematic to display from thumbnails on the right and click for download.
For model VTR225, Bush Radio; London:
Ebay UK auction item number 282386960327 seller svraj27

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SC394 2SC394 2SC380 2SC380 2SC380 2SC371 2SB54 2SB54 2SB56 2SB56
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.28 W (unknown quality)
from Radiomuseum.org Model: VTR225 - Bush Radio; London
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

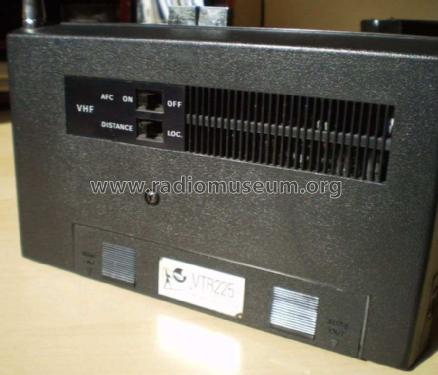

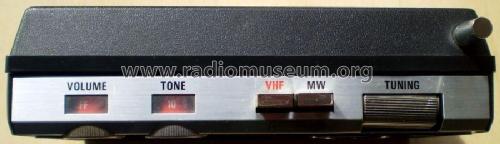

Portable MW/VHF transistor radio. Supplied with leather carry case. Socket for earphone.

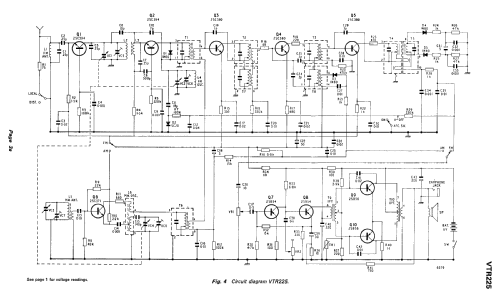

Literature/Schematics (1) - - Manufacturers Literature (Bush Service Information TP1864)

Model page created by Howard Craven. See "Data change" for further contributors.
