Antique Radio TR82 / 97

Antique Radio TR82 / 97; Bush Australia Pty. (ID = 692698) Radio Antique Radio TR82 / 97; Bush Australia Pty. (ID = 692700) Radio
Antique Radio TR82 / 97; Bush Australia Pty. (ID = 692699) Radio Antique Radio TR82 / 97; Bush Australia Pty. (ID = 692701) Radio
Antique Radio TR82 / 97; Bush Australia Pty. (ID = 692702) Radio Antique Radio TR82 / 97; Bush Australia Pty. (ID = 692703) Radio
Use red slider bar for more.
Antique Radio TR82 / 97; Bush Australia Pty. (ID = 692698) Radio
Bush Australia Pty.: Antique Radio TR82 / 97 [Radio] ID = 692698 544x498
Select picture or schematic to display from thumbnails on the right and click for download.
For model Antique Radio TR82 / 97, Bush Australia Pty.Ltd,, Sydney:
Kaunas Lithuania

Country:  Australia
Manufacturer / Brand:  Bush Australia Pty.Ltd,, Sydney
Year: 1997 Category: Broadcast Receiver - or past WW2 Tuner
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Antique Radio TR82 / 97 - Bush Australia Pty.Ltd,,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)

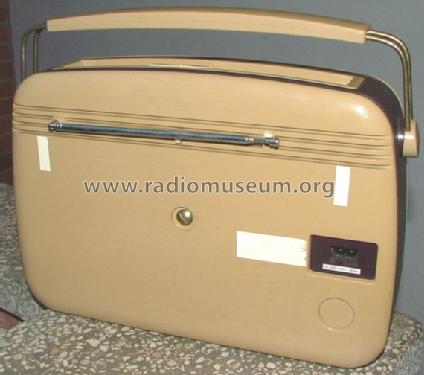

Dimensions (WHD) 330 x 230 x 90 mm / 13 x 9.1 x 3.5 inch
Notes No tubes, no transistors, only a single IC.
The Bush reproduction of their classic early transistor radio, the TR82 (see in RMorg).
At first glance, this reproduction is fairly good. The set is the same size as the original. To bring it up to date Bush have added the VHF band and a mains power supply.

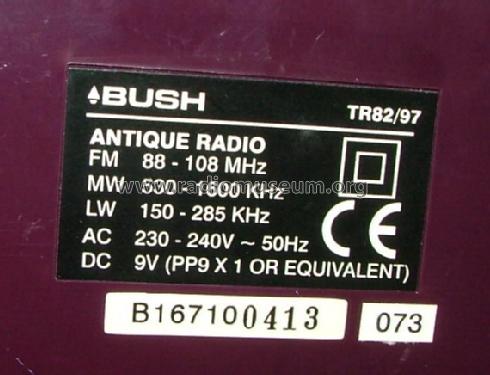

Coverage MW, LW, FM 88-108 MHz.
Also found at Bush UK.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Collectors' prices

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
