• Year
  • 1939 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 298932
    • alternative name: CMC Canada || Marconi, Canada

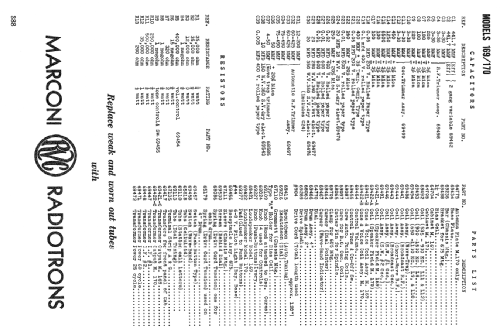

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 3 W (7 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org

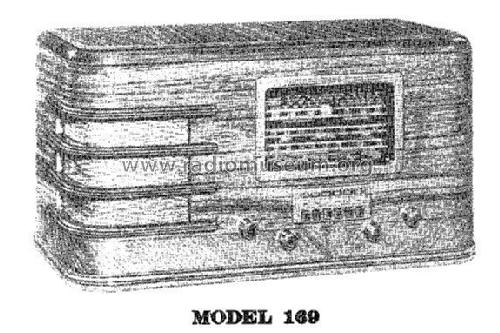

  • Model: 169 - Canadian Marconi Co. Ltd. CMC,
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • The Canadian Marconi model 169 is an 8-tube table radio with tuning eye tube and pushbutton station selection. Covers standard broadcast and 2.2-7 MHz and 6.9-22.3 MHz shortwave.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
