• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294263

• • alternative name: CMC Canada || Marconi, Canada

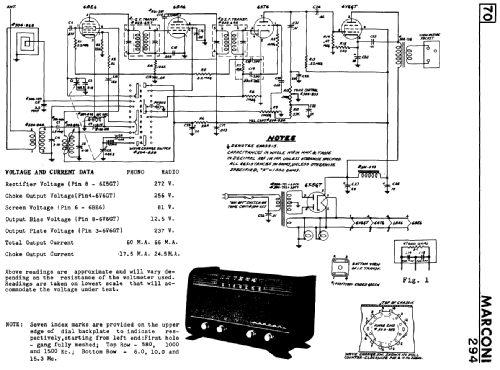

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 294 [Table Radio] - Canadian Marconi Co. Ltd. CMC,

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Canadian Marconi model 294 is a 5-tube table radio. Covers standard broadcast and 6 to 15 MHz shortwave. For 25 or 60 Hz depending on nameplate rating.

  There is also a Marconi model 294 car radio but it is completely different.

• Literature/Schematics (1)

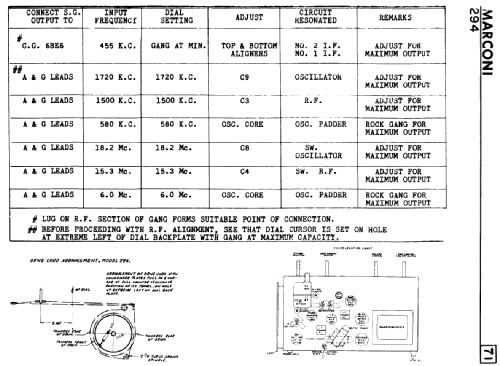

• Radio College of Canada (RCC) (Supplement 24 page 70)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
