32 ; Canadian Marconi Co. (ID = 1272610) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UX232 UX232 UX230 UX230 UX230 UX231 UX231
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 2 & 135 & -22.5 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 32 - Canadian Marconi Co. Ltd. CMC,
Notes Push-pull af output.
Literature/Schematics (1) Marconi Service Manual Volume No. 2

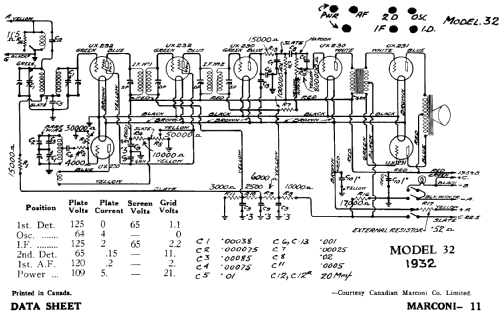

Literature/Schematics (2) Radio College of Canada (RCC) (Marconi data sheet 11)

Model page created by Bruce Morgenstern. See "Data change" for further contributors.



All listed radios etc. from Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
Here you find 443 models, 303 with images and 363 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
