- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1934
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 247538
-
- alternative name: CMC Canada || Marconi, Canada

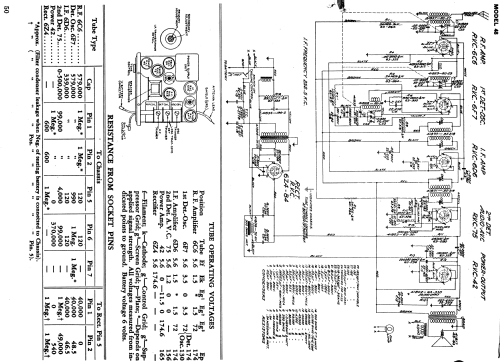

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 252.5 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 48 - Canadian Marconi Co. Ltd. CMC,
- Notes
-
Vibrator for +B.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Marconi data sheet 21)
- Literature/Schematics (2)

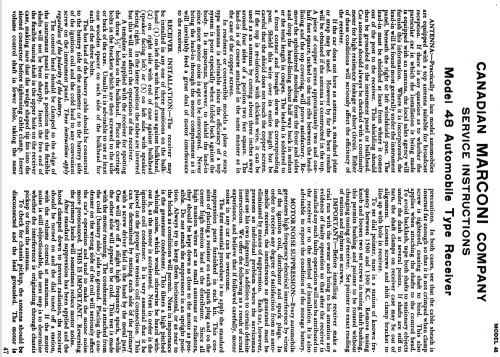

- Marconi Service Manual (Volume 1) (Pages 47 to 50)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
