For model 6B45, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC:
Picture from Marconi Radio Service Manual

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A8GT 6SK7GT 6SQ7GT 6SN7GT 6E5 6V6GT 6SJ7GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 456 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Recording phonogr.-Disc Recorder
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 6B45 - Canadian Marconi Co. Ltd. CMC,
Material Wooden case, TUBES VISIBLE.
Shape Console, Lowboy (legs < 50 %).

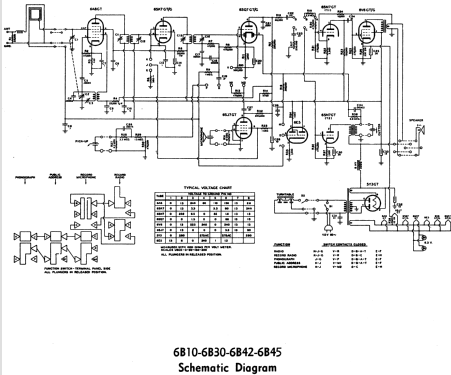

Notes The Marconi Model 6B45 is an AC operated 8 Tube combination BC Band Receiver, Disk Recorder with Microphone, Public Address System and phonograph. BC Band Tuning Range: 540 to 1600kHz. Has built-in loop antenna. Uses Qty(1) Elliptical PM 6" x 9" speaker. Built-in record player is a record changer. Marconi Models 6B10, 6B30 and 6B42 use the same chassis and schematic.
Literature/Schematics (1) Marconi Service Manual Volume No. 2 (Volume 2, Page 293)

Model page created by John Kusching. See "Data change" for further contributors.
