• Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 179535
    • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 462.5 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 56 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

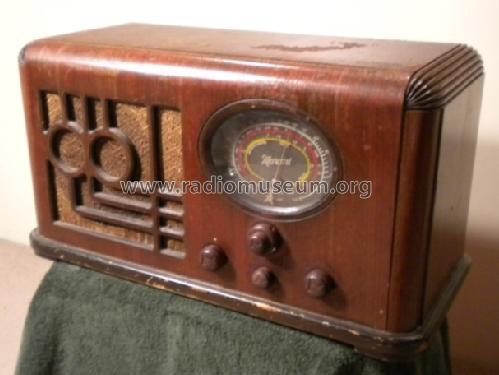

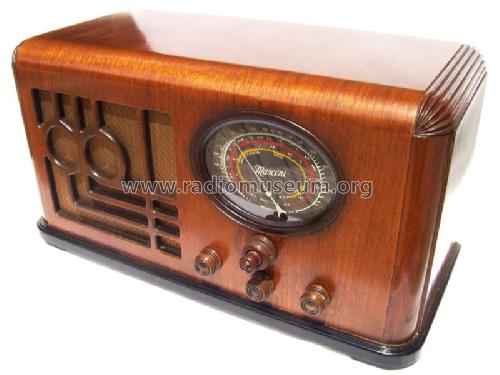

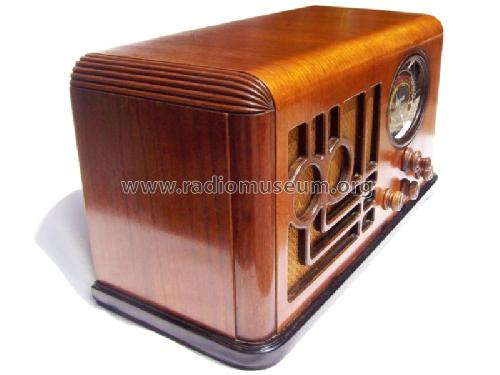

  • Model: 79 - Canadian Marconi Co. Ltd. CMC,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 21 x 11 x 10 inch / 533 x 279 x 254 mm
  • Net weight (2.2 lb = 1 kg)
  • 12.3 kg / 27 lb 1.5 oz (27.093 lb)
  • Source of data
  • - - Data from my own collection
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Marconi p.44
  • Author
  • Model page created by Christian Walter. See "Data change" for further contributors.
